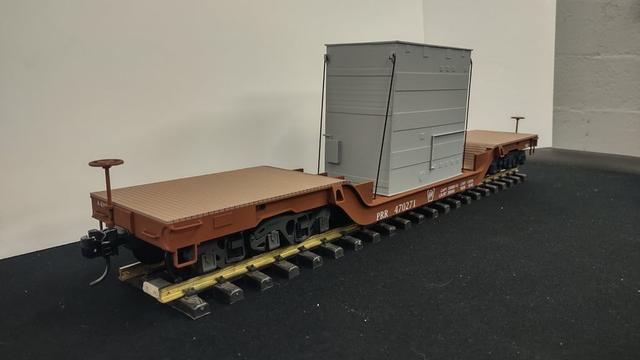

1:29 G Gauge 58' Depressed Center Flatcar 3D model thumbnail

1:29 G Gauge 58' Depressed Center Flatcar

by 512Designs · via Thingiverse
FormatSTL
CategoryTools
LicenseCC BY-NC
UploadedApr 17, 2026
⬇ 27 downloads ❤ 8 likes 👁 176 views

Description

PLEASE SEE ATTACHED ASSEMBLY GUIDE PDF 1:29 Scale 58' Depressed Center Flatcar. This car uses my 6-wheel Buckeye Trucks available on my page. Hardware List: -(2) ¼" Steel Rod - 245mm long -(14) ¼" Steel Rod - 74mm long (only 4 needed. Use all 7 for adding weight to car) -(2) ¼" Steel Rod - 24mm long -(4) M4 Threaded nut heat-insert. 6mm OD. 8mm deep is preferred but can be 6 or 10mm deep. -(4) M4x14mm button head screws (allen key head) -(1) Kadee #907 coupler set -(1) 3/64" brass rod 4-pack (K&S metals) -Adhesive. I prefer to print with PETG and use JB Weld Plastic Bonder epoxy to join the large pieces. For small pieces I prefer super glue gel. -Optional: If using ‘Old Style Brake Wheel’, you'll need (2) 6D 2" Finish Nails. Cut them down to 38mm long, eliminating the pointy end.
129 car center depressed flat G gauge G Scale Model Trains train
