1/4" Socket Set Wall Control Mount

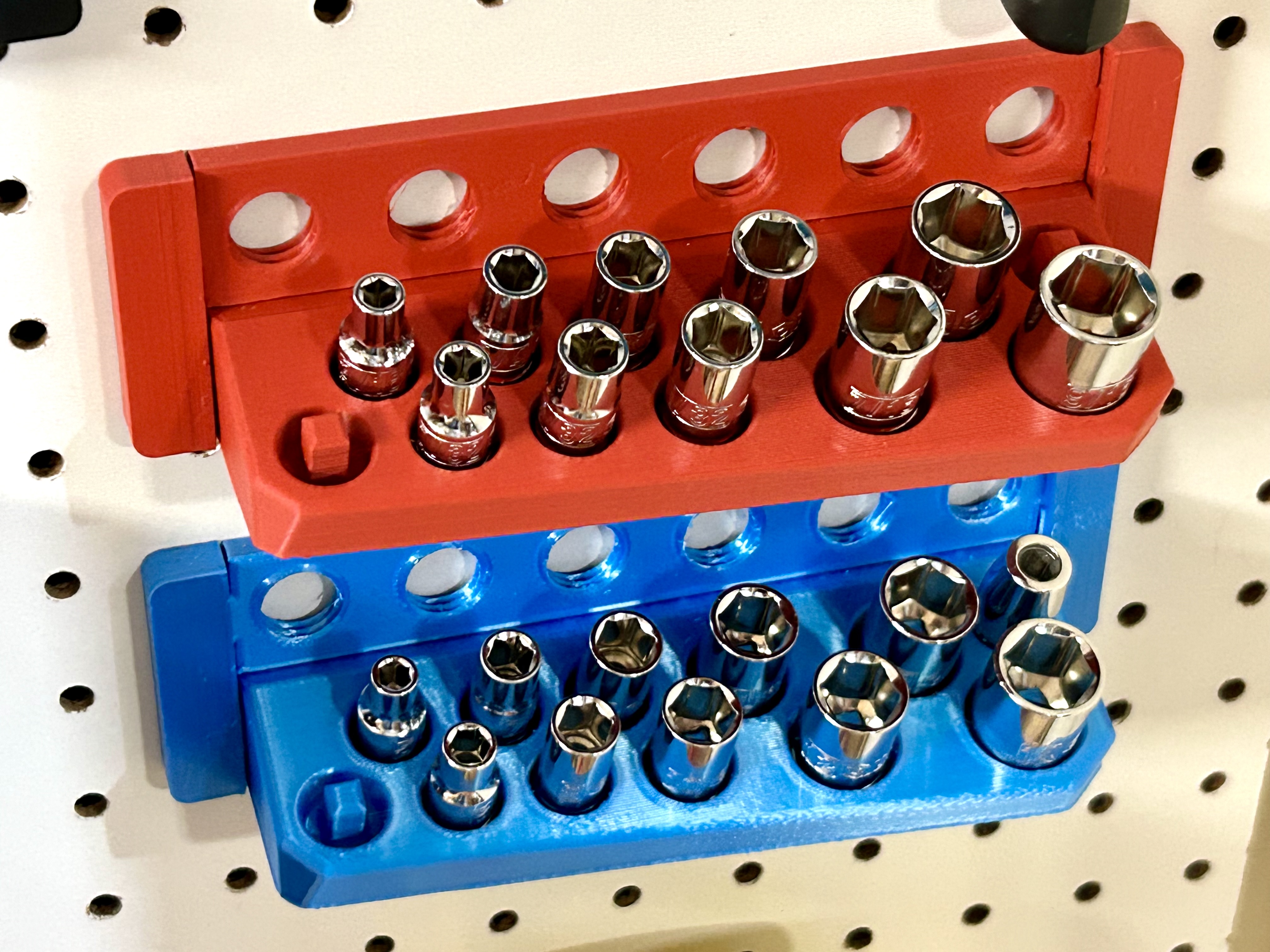

This uses the DDD Printable Wall Control System ( github ) to mount ¼" sockets onto a wall control surface. There is space for 11 standard sized sockets, and one extra spot for an adapter or another smaller socket. The socket sizes fit both Metric 5mm to 14mm and SAE 3/16" to 9/16". I tested fit using a variety of Gear Wrench, Quinn, Wera, and Stanley sockets. Please leave me a message if you have any that are bigger. I printed at 20% gyroid infill with no support required. There are holes for 6x2mm and 10mm magnets below each socket mount if you would like to use them. For the sidepieces I used the 2x0 Flat ( Left and Right ) models. Then use two 4x10x8mm pins to attach these to the mount. This will also require a 1x6 spacer above the mount. I used a 1x6 locking spacer . If desired, print threaded pin(s) to secure the spacer from vertical movement. I print the threaded pin at 97% size in X-Y dimensions to thread it more easily. I have also mounted this on 1" wood pegboard using the sidepieces in this model .
