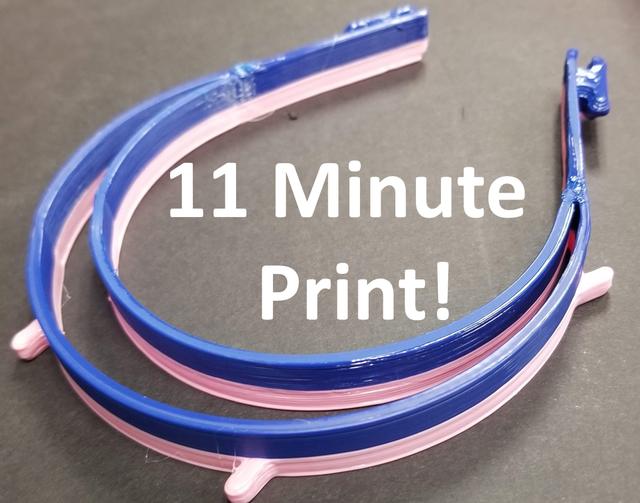

11 Minute Face Shield Headband 3D model thumbnail

11 Minute Face Shield Headband

by HillMakeItBetter · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC
Triangles6.6k
UploadedApr 25, 2020
⬇ 127 downloads ❤ 1 likes 👁 941 views

Description

Changed the side angle of the the (4 tab) Prusa Face Shield to be more comfortable on the head. Design was also optimized for a large nozzle - namely the 1.2mm MOAStruder on the Taz 6. 1 part prints in 11 minutes. 4 parts an hour! V12: Curved the end so it doesn't dig into your head. Also lowered the height for the 4 tabs 5mm to 4mm. Print instructions extruderDiameter,1.2 extruderWidth,1.44 extrusionMultiplier,0.98 extruderRetractionDistance,5.5 extruderExtraRestartDistance,0 extruderRetractionZLift,0.2 extruderRetractionSpeed,1000 extruderCoastingDistance,1 extruderWipeDistance,4 layerHeight,0.55 topSolidLayers,3 bottomSolidLayers,2 perimeterOutlines,1 printPerimetersInsideOut,1 startPointOption,3 startPointOriginX,140 startPointOriginY,140 firstLayerHeightPercentage,140 firstLayerWidthPercentage,100 firstLayerUnderspeed,0.3 useRaft,0 (no) useSkirt,0 usePrimePillar,0 internalInfillPattern,Grid externalInfillPattern,Concentric infillPercentage,0 outlineOverlapPercentage,15 infillExtrusionWidthPercentage,95 minInfillLength,0.5 externalInfillAngles,45,-45 generateSupport,0 temperatureSetpointTemperatures,Layer 1-255,3-253,5-248, Bed-75 fanSpeeds,0 (no fan) defaultSpeed,3600 outlineUnderspeed,0.9 solidInfillUnderspeed,0.7 supportUnderspeed,0.5 rapidXYspeed,5000 rapidZspeed,1000 onlyRetractWhenCrossingOutline,0 retractBetweenLayers,0 useRetractionMinTravel,1 retractionMinTravel,10 retractWhileWiping,0 onlyWipeOutlines,0 avoidCrossingOutline,1 maxMovementDetourFactor,5 externalThinWallType,0 internalThinWallType,2 thinWallAllowedOverlapPercentage,50 singleExtrusionMinLength,0.5 singleExtrusionMinPrintingWidthPercentage,10 singleExtrusionMaxPrintingWidthPercentage,200 singleExtrusionEndpointExtension,0.2 horizontalSizeCompensation,0
