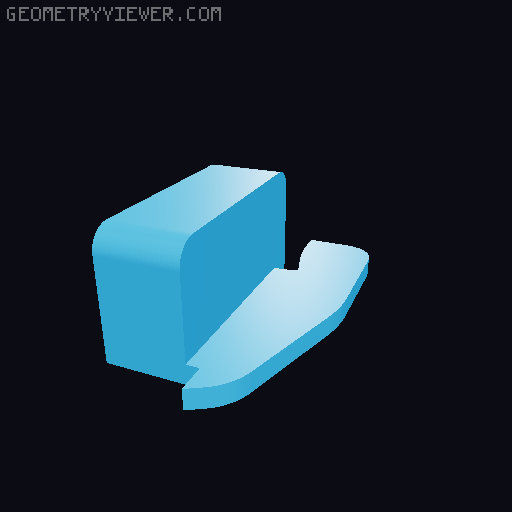

12" Magnetic tool strip bracket for DDD Wall Control
by tdiggity · via Printables
| Format | STL |
| Category | Mechanical |
| License | CC BY-NC-SA |
| Triangles | 652 |
| Uploaded | May 7, 2024 |
⬇ 41 downloads
❤ 13 likes
👁 257 views
Description
Things required: M6 x 8mm screws (qty 2) M6 brass inserts (qty 2, 7mm x 10mm height)' 12" Magnetic toolstrip like these: https://www.amazon.com/Alouette-Pieces-Magnetic-Organizer-Workshop/dp/B01MR6T2HQ Print: qty 2 of “1x0 Flat Right” qty 2 of "1x0 Flat Left" qty 2 of “8mm Lock Pin” qty 1 of left side qty 1 of right side Assembly: Add M6 brass inserts to each left and right bracket Add left and right bracket to wall control board with proper spacing (14" long) Add locking pins to each side to secure to board Screw magnetic tool strip to the brackets with the M6 screws
