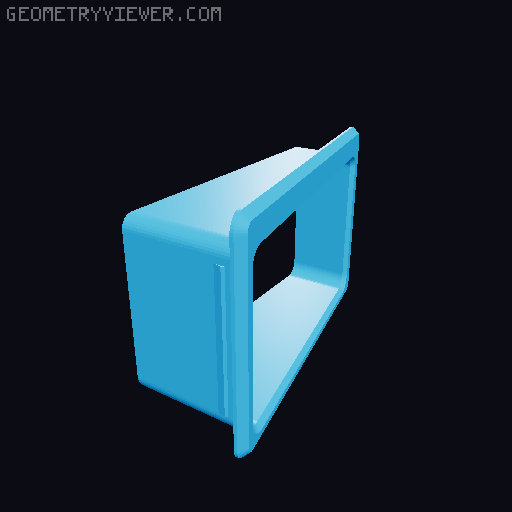

15 deg remix + magnetic 2020-profile mount 3D model thumbnail

15 deg remix + magnetic 2020-profile mount

by Markus · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles1.0k
UploadedFeb 8, 2024
⬇ 27 downloads ❤ 3 likes 👁 441 views

Description

I love the AirManager from SCHWEINERT but I wanted to place it in the corner of my printer hausing. Therefore the power plug & the PWM control had to be moved to the front. To make room for them I turned the blower by 15 degrees so the power plug with the cable can be pluged in in the front near the wall parts which needed change are the blower-housing& the funnel. I made a inlay for the PWM control to adjust easier to differnet types without need to reprint the whole housing (mine did not arrive when I started printing) The other parts are unchanged. I also made a magnetic mount which can be screwed to my 2020 profiles. 4 magnets 10mm diameter * 3mm are needed for it. the places mathing the ones of the original Blower-housing-magnetic-cover
filter air carbon active hepa airfilter carbonfilter hepafilter
