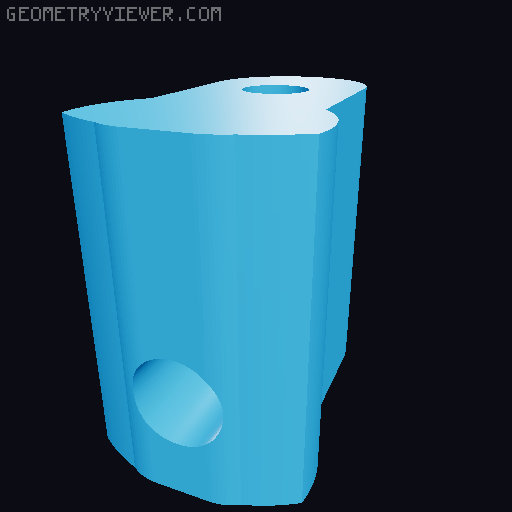

18650 Micro Foldable FPV Drone

This project is a custom-built foldable long-range FPV drone designed for efficient, extended flight times of up to 18 minutes. The frame is entirely 3D-printed and incorporates a unique folding mechanism for easy portability. The drone is powered by a single 18650 cell, with a focus on creating a lightweight and cost-effective setup using components like repurposed Cetus X motors and an affordable AIO flight controller. Throughout the build, challenges included optimizing 3D-printed part designs for precise assembly, dealing with material fragility, and troubleshooting various electrical issues. A key innovation was the magnetic battery connection system, which resolved voltage drop issues caused by initial design flaws. This drone offers a practical and accessible solution for those interested in long-range FPV flight, balancing simplicity, functionality, and affordability. Part 1 Part 2: Print Settings: Layer Height: 0.2 Bottom Shells: 3 Top Shells: 4 Infill: 15% Speed: 120mm/s Parts: FC: https://s.click.aliexpress.com/e/_olzt3M5 * Battery: https://s.click.aliexpress.com/e/_omPpQdL * (Pick a good one!) 4x 3mm x 41mm Carbon rods: https://s.click.aliexpress.com/e/_oDEKnG9 * Motors: https://s.click.aliexpress.com/e/_ooSbAyZ * Cheaper Motors: https://s.click.aliexpress.com/e/_oCzHpeh * (The motor mount for this is untested) VTX: https://s.click.aliexpress.com/e/_oEqMzmv * Camera: https://s.click.aliexpress.com/e/_oonKwJR * Props: https://s.click.aliexpress.com/e/_ol8grZB * 6x M2 x 2.5mm x 3.2mm Threaded Inserts: https://s.click.aliexpress.com/e/_oE0oS4h * 1x 10mm x 3mm, 1x 6mm x 3mm neodymium magnet: https://s.click.aliexpress.com/e/_oBIBzvr * Filament: https://s.click.aliexpress.com/e/_onDybZf * 4x M2 x 6mm Screws 4x M2 x 16mm Screws Accessories: Remote Control: https://s.click.aliexpress.com/e/_oCUNKaR * Electric Screwdriver: https://s.click.aliexpress.com/e/_omFdLlp * Analog Goggles: https://s.click.aliexpress.com/e/_oEX2qIz * Links marked with a * are affiliate links. If you make a purchase through these links, I earn a small commission at no extra cost to you.
