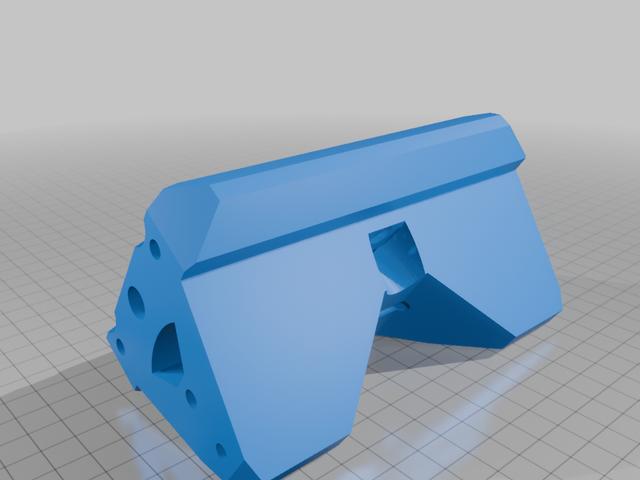

1970-1980 Kawasaki dual sport or other light bar mount

-This bracket was designed around the Kawasaki g4tr (1974) but should fit all 6 inch fork cover headlight mounts (fork ears). please measure before printing. -Intended use is for 2 6-inch light bars (touring items type S "elevate" 6 in single row light bar) uses original mounting bracket and bolts 3 holes ~5.8mm diameter for aluminum pipe of 5.5-5.7mm diameter (front two will need to be cut to allow for original metal bracket) -rear hole is ~5mm for mounting M3 threaded inserts, for replacing (or adapting to) reflector placement in order to stop from rotating. -you will need a depth of at least 85.5 mm from front bolt, shorter fork ears will not fit properly. front bolts are generic heavy light bar mounting bolts dimensions are -9.8mm thread diameter paired with a 5/8 hex nut, thread pitch is up to the user.
