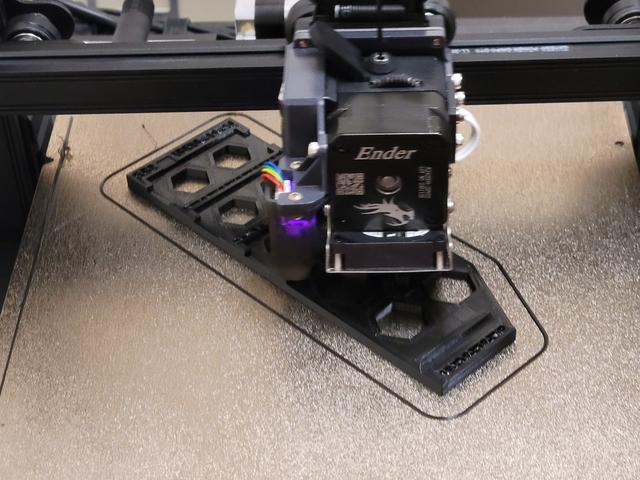

1U networking tray to go with Cisco 3560CX switch 3D model thumbnail

1U networking tray to go with Cisco 3560CX switch

by ComputersAndCats · via Thingiverse
FormatSTL
CategoryHome
LicenseCC BY-SA
UploadedMar 18, 2026
⬇ 6 downloads 👁 41 views

Description

This is a bit of a specialized piece but you never know. I made this to work with a 1U shelf I had. I wanted something to span the gap between my Cisco WS-C3560CX-12PD-S switch and the other edge of the rack shelf. There are 3 spots for some RJ45 couplers that measure 24x48mm that I had on hand. On one side there is a screw hole for the Cisco switches rack ear mount. On the other side there is a recessed opening for a ¼-20 nut. Then you drill a hole in the right spot and use a ½" long ¼-20 bolt and washers to hold it down. Video showing it off: https://youtu.be/GGxTNzoy43c
homelab
