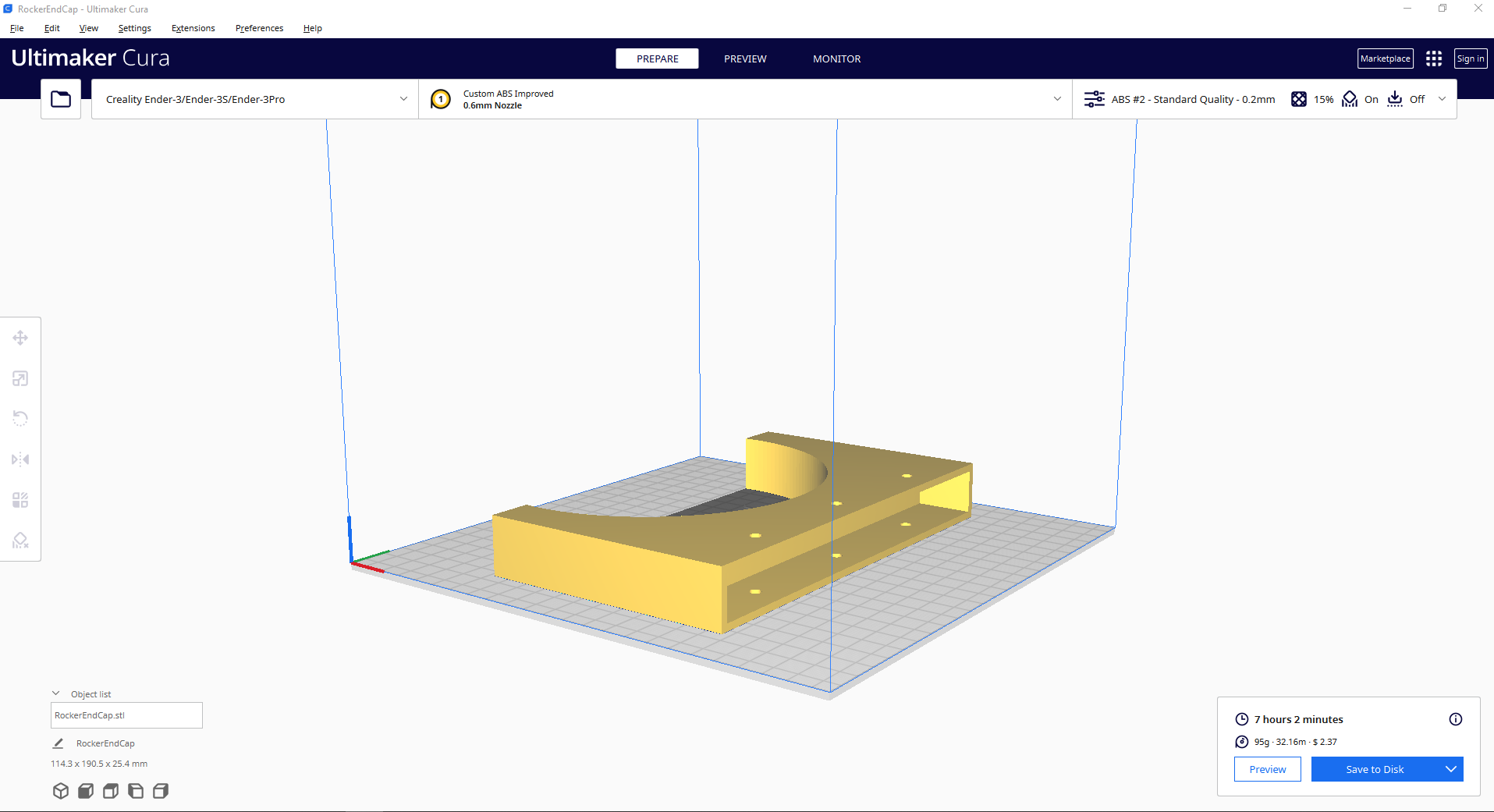

1x8 Plank Rocker Endcap
by BigFart5 · via Printables
| Format | STL |
| Category | Other |
| License | CC BY-NC |
| Triangles | 1.3k |
| Uploaded | Jan 27, 2023 |
⬇ 87 downloads
❤ 14 likes
👁 472 views
Description
Fits a 1"x8" nominal board to mount the Hadley onto a wood frame without having to cut a semi-circle. Fits an actual board of 0.75"x7.25". Use 3 #10-24 screws to lock in place, need about 1.5" length. Note, this is the first version, will update if necessary. You can use wood screws if you don't feel like drilling all the way through the wood Now includes a minimal version. Less material and less supports that start on top of part of the model.
AI Analysis: This is a mechanical part designed for use in a plank rocker furniture assembly. It serves as a structural component that connects the main planks of the rocker to the end cap, providing stability and support. The part features a rectangular shape with a slightly curved top edge and a recessed area for the rocker's base.
