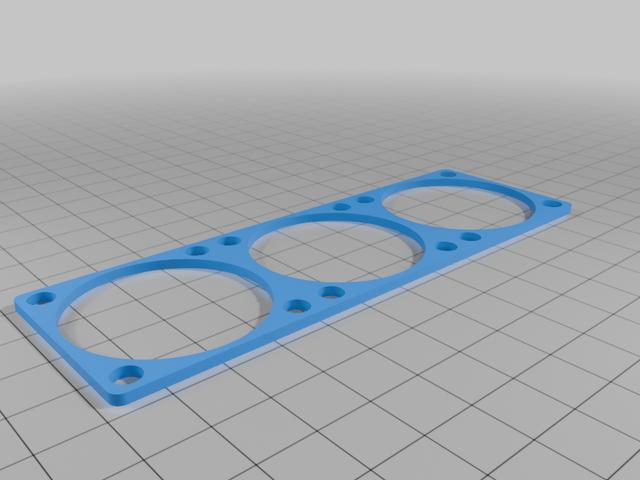

3-fan connector plate/fan bracket for 3x 40mm fan 3D model thumbnail

3-fan connector plate/fan bracket for 3x 40mm fan

by FloPro81 · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
UploadedApr 10, 2026
⬇ 4 downloads 👁 9 views

Description

This is a simple design for connection of three single 40mm fans. I am using that little arrangement for my laser cutter to blow away the fume during cutting. Other I've created a V1 and a V2. You can go with one of those (maybe scaling it up in z-direction only for improved stability) or using two party to put the three fans in between. You can combine V1 plate design and V2 plate design. See the images in the "makes". V2 provides some attachment points for a cable tie.
40mm fan bracket 40mm fan connector fan bracket Fan connector Simple print
