4-way distributor dust collection for CAMLOCK
by FablabDesigns · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 33.2k |
| Uploaded | Feb 28, 2024 |
⬇ 331 downloads
❤ 141 likes
👁 2.3k views
Description

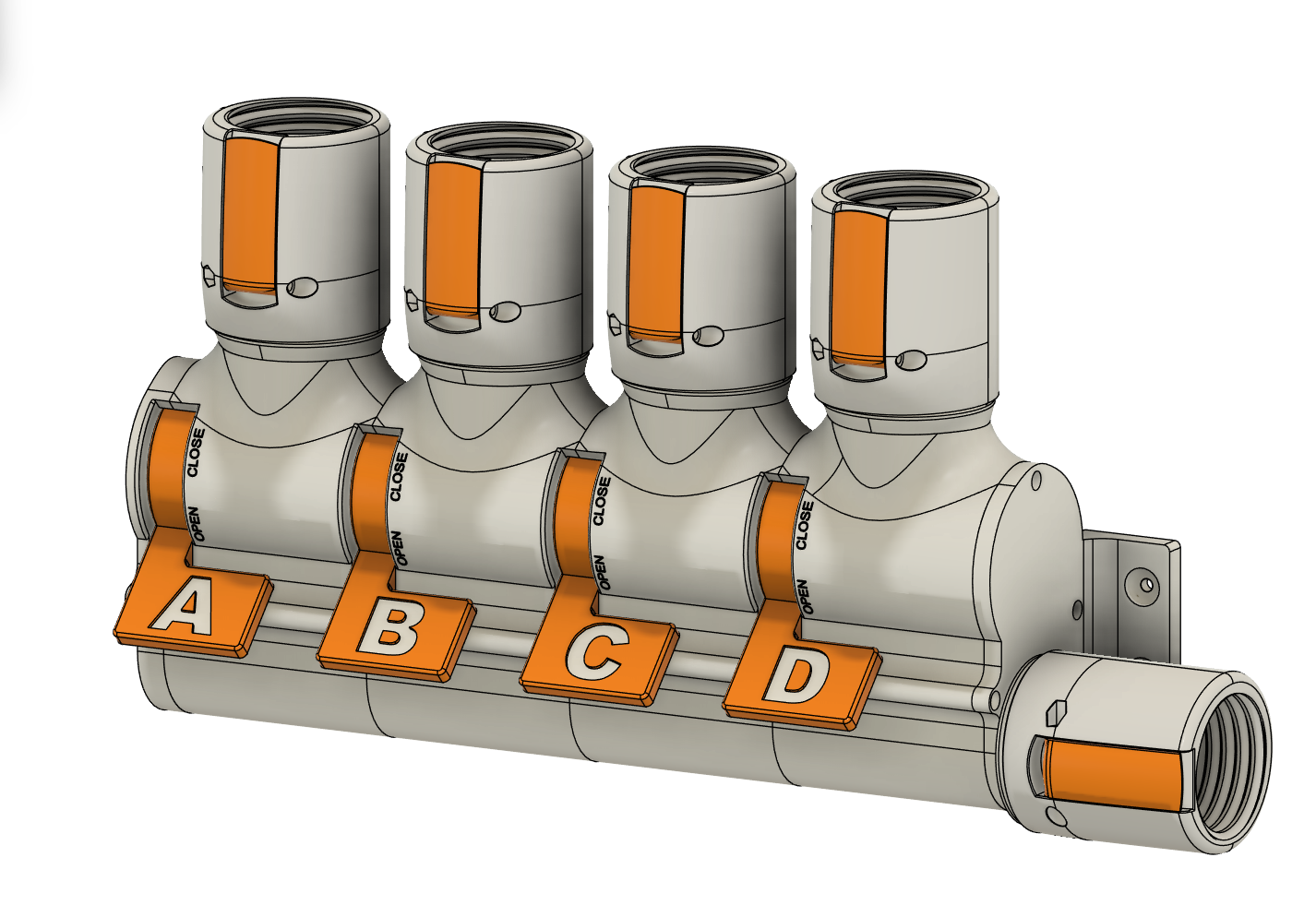

I am not good at editing stl file, so I redraw it by fusion360. This distributor fits camlock, because my dust collection all using CAMLOCK system. You may need 3mmx40mm support pins to contact two parts, mid body part can be added many as you like. Also 8 Hot insert nuts needed for right and left side cover. I printed mine using ABS, all parts fitness designed for ABS.
