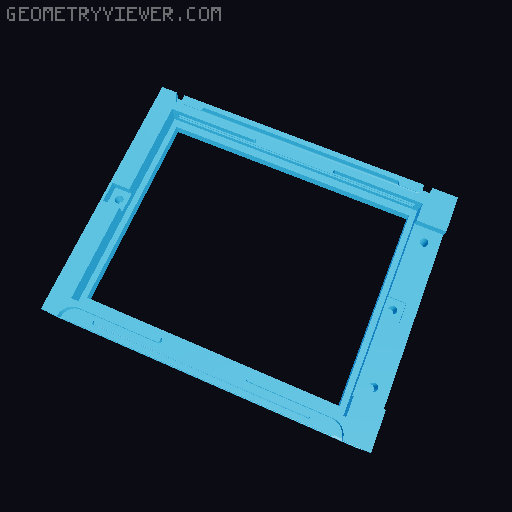

4x5 Graflok compatible Groundglass Holder

This is my version of the Vega Groundglass Holder. If you are Using a Vega Camera I recommend the Graflock back: https://www.printables.com/model/276973-vega-4x5-graflok-back I started by makig a Copy of the Original GroundGlass in FreeCad. After that I started with adding features: Grooves for Graflok Grooves of the ground glass for masks A notch to prevent it from slipping while Attached to the Camera. Currently i only have two masks for the Holder: 6 x 9cm (for Instax with Offset) 6 x 7cm (for film Backs) 6 x 6cm (for film Backs) 6 x 12cm (for film Backs) 6 x 9cm (for film Backs) The masks are thin and can be bend to fit into the grooves. After putting them in, they should be flush with the Ground Glass. The masks have the size of 104.9 x 121.9cm. I Intend to add more Masks and making Framing guides using some rules like rule of thirds or Fibonacci sequence. I Printed mine in PLA+. With following strength settings: Wall loops 4 TopShell 4 bottom shell 4 infill 15% BoM: 4x m3 Heatset inserts ( I used Voron compatible Heatset inserts) (Only if Heatset Insert version is used) 3x m3x8 shcs Glue for notch Ground Glass Assembly: insert heatset inserts into frame. Two for Holder, Two for Groundglasssprings (only for heatset insert version) glue in the Notch at the Bottom. put in ground glass (mat side down) screw down the Groundglass using two m3x8 Screws and the Springs attach the Handle for easier holding. done To be done: add more masks for formats full frame … Add framing guides grid rule of thirds Fibonacci sequence sony alike? …. Updates: 2024-09-30: add : Threaded version to use without Heatset Inserts mask for 6x6 mask for 6x9 mask for 6x12
