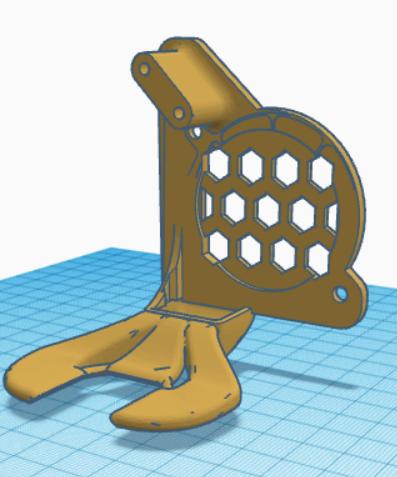

5015 Blower Modification for Ender 3 V3 SE

Material: 5015 Fan: https://amzn.to/48iaoK5 PETG: https://amzn.to/41nVEqF Overview This document details a custom modification for the Ender 3 V3 SE 3D printer, featuring the installation of a 5015 radial blower with an innovative 3-way air duct. This modification is designed to enhance cooling and airflow management, improving print quality. Modification Objectives Enhanced Cooling:* The 5015 blower provides a stronger, more focused airflow. Efficient Air Distribution:* The 3-way duct ensures even air distribution across the print bed. Customized Mounting:* Designed for easy integration without significant alterations to the Ender 3 V3 SE. Print Quality Optimization:* Improved airflow minimizes issues like warping and stringing. Design Details Blower Type:* 5015 radial blower. Duct Design:* Custom-designed 3-way duct for optimal airflow. Materials:* Heat-resistant PLA or PETG. Mounting:* Direct integration with the printer's existing fan mount. Installation Original Fan Removal:* Remove the existing fan from the Ender 3 V3 SE. 5015 Blower Installation:* Attach the new blower to the print head. Duct Adjustment:* Fit the 3-way duct onto the 5015 blower. Wiring:* Ensure proper wiring of the blower to the printer motherboard. Test Print:* Conduct a test print to verify installation. Usage Notes - Ensure compatibility with your specific Ender 3 V3 SE model. - Firmware adjustment is not required for this modification. Conclusion This 5015 blower and 3-way air duct modification for the Ender 3 V3 SE significantly enhances print quality and reliability by providing more efficient cooling and precise airflow control.
