8mp Pi Cam v2 remix for MK4

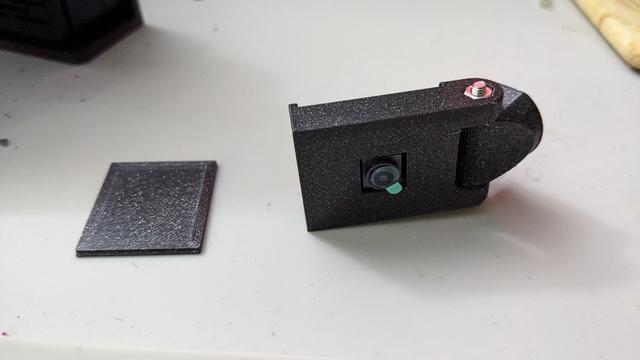

***Updated 11/8/24: added the connector arms (Arm_A and Arm_B) Update 5/1/24: added my modded 3 connectors for connecting everything together*** This is a remix is for THIS cam… https://www.amazon.com/gp/product/B01ER2SKFS?psc=1 I've included images of it printed as well as the pi used, plus a diagram for anyone who wants to further change or alter a design of their own. I believe you may need to rotate your camera 180 degrees somewhere in the application you are using (I use Octoprint), as this mount turns it upside down, which is needed for this design because of the direction the ribbon cable must go. Keep the camera in the mount with 2 dabs of hot glue. Print at 0.15mm layer height, PLA is fine. I used a 0.4 nozzle that came with my MK4. You can probably add a dab of hot glue to keep it in there on 2 of the edges. Mine fit perfectly. You can slide the lid in and out a couple to times to break it in. The curves on the cover print so small that you will want to make sure it is in the channel properly (it can only slide in 1 way, Front<>Back by following the filleted edge created for this cover).
