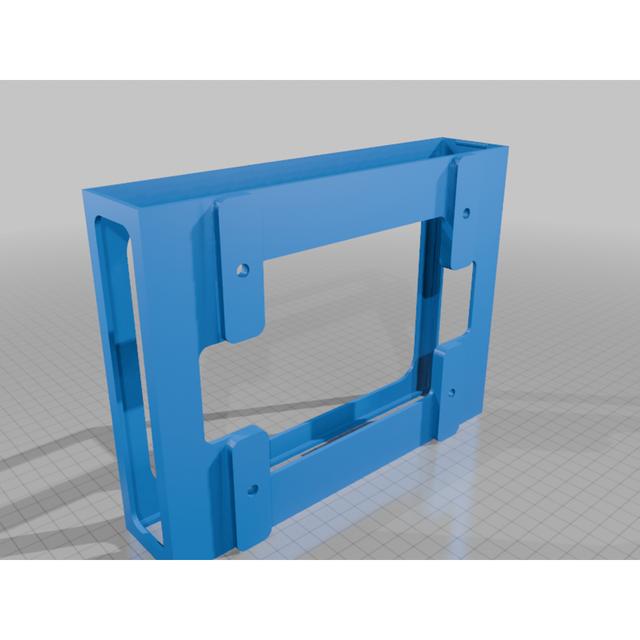

A simple wall mount for a FortiGate 70G Firewall / Router 3D model thumbnail

A simple wall mount for a FortiGate 70G Firewall / Router

by Meltdown12189 · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
UploadedApr 26, 2026
👁 11 views

Description

I needed a wall mount for a FortiGate 70G firewall, so I made one. This is a quick and simple wall mount. I printed mine in the vertical, face down orientation in my X1C using white ABS so it can take the heat of the FortiGate without warping. I printed mine at 40% infill for strength with 4x wall loops, a 5mm brim to keep it from popping off the build plate and tree supports since I tried to keep this design as open as possible. The mount was designed using specs from the FortiGate datasheet, so the firewall should slot in nice and click in with a couple small retention nubs at the opening. Enjoy
70G fortigate FortiGate 70G fortinet mount wall mount wallmount
