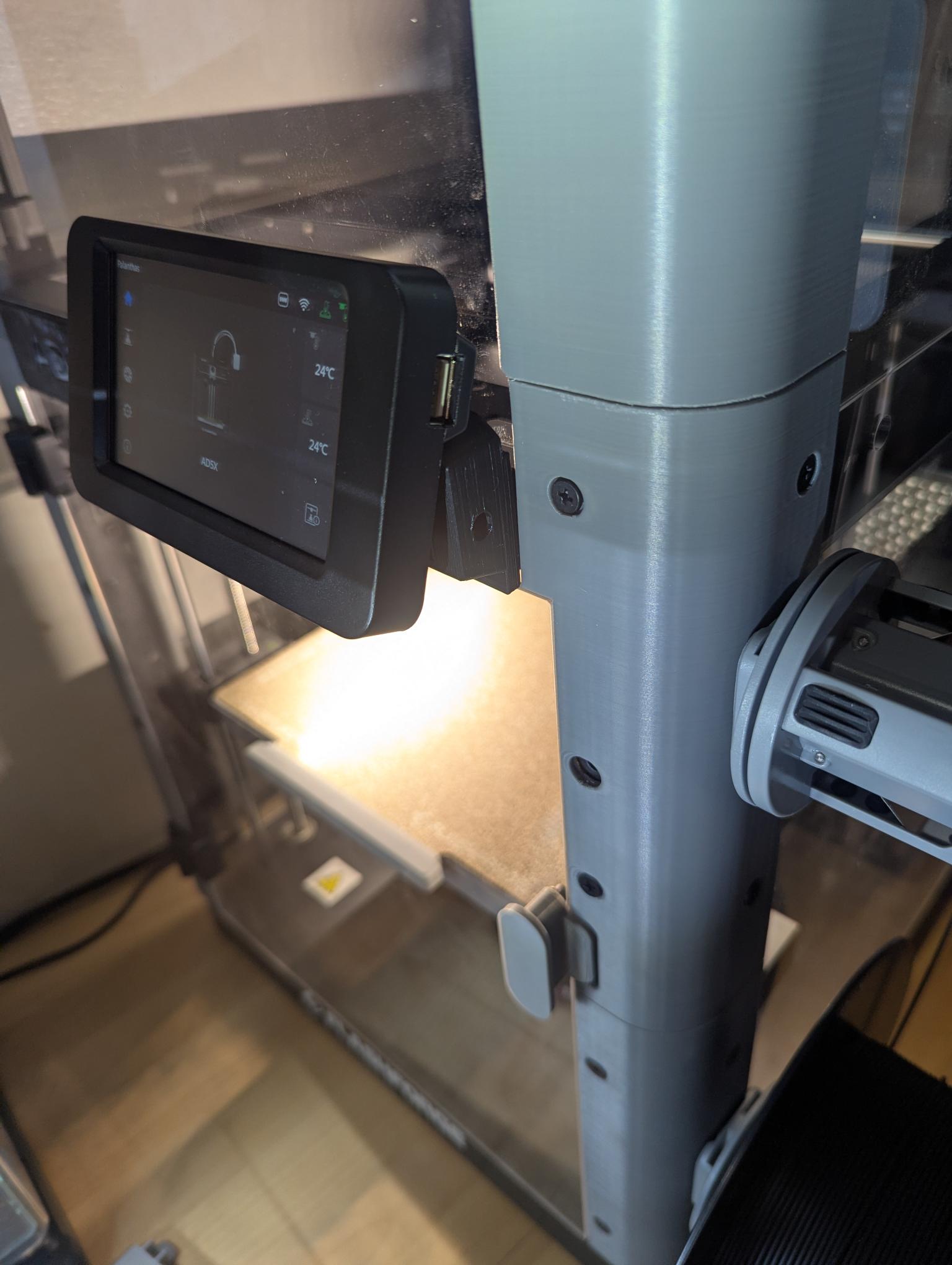

AD5X Enclosure LCD mount with screw in attachment and Switch location. 3D model thumbnail

AD5X Enclosure LCD mount with screw in attachment and Switch location.

by Lamrith · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles4.3k
UploadedDec 1, 2025
⬇ 38 downloads ❤ 12 likes 👁 749 views

Description

Remix of FF Enclosure LCD mount bar that is slightly longer and with more solid mounting. CHANGES: Added 1.5mm to the left side for better fit. Added two heatserts (orange in pict) for more secure attachment to frame, no more floppy LCD display. Added a location for a small switch to control; led, fans, or…. USE AT YOUR OWN RISK & ONLY USE BUTTON HEAD SCREWS Clearance with toolhead is very close and I take no responsibility if your toolhead crashes, mine clears fine with button heads. SWITCH USED (I chose 3P3D version, make sure dimensions match pictures in this post): https://www.amazon.com/dp/B07BD1NNCC MUTIPLE OPTIONS (All are longer with switch port and heatsert locations): AD5X logo with frame tabs. AD5X Logo no frame tabs Blank with frame tabs Blank with no frame tabs.
ad5x ad5xenclosure
