Adam's Morse Code Paddle with Dove Tail and Cable

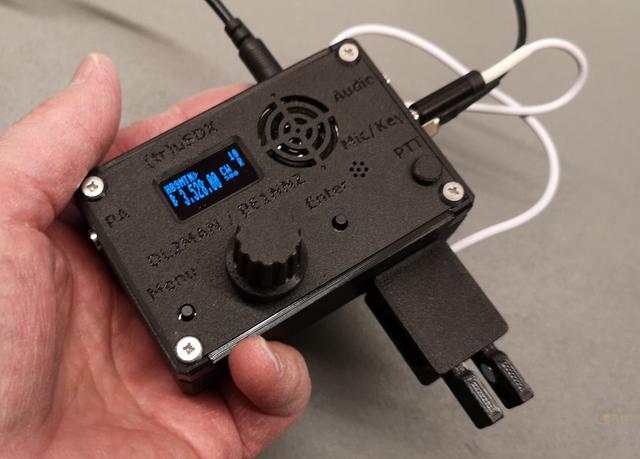

I played around with Adam's original files and ended up with a solution with magnets and an ordinary hinge instead of the integrated hinge and a dove tail that allows for attaching the paddle to the housing of the (tr)uSDX. The “HB9MTN_Levers_DT” is a one-piece PLA print with 0.12mm air-gaps in the hinges. The tension is regulated by two or more 6x1mm Neodyme magnets, either mounted in different places or stacked. I fixed the magnets with double sided carpet tape. Because there can be a vertical movement of the levers in the hinge I added elevated sliding surfaces to the Press-on Bottom and Top. “K6ARK_Levers_DT” is Adam's original file with integrated hinge, but added dove tail and recesses for Neodyme magnets. “K6ARK_Levers_Neodyme” is Adam's original file with recesses for Neodyme magnets. HB9MTN, Edi
