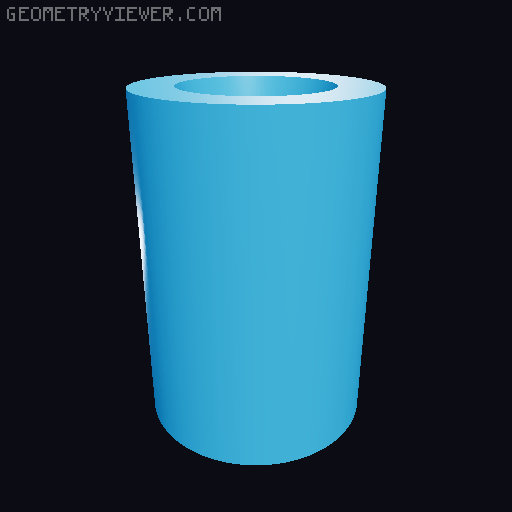

Adapter for 2,5 kg spools 3D model thumbnail

Adapter for 2,5 kg spools

by jocin · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles15.8k
UploadedOct 15, 2023
⬇ 150 downloads ❤ 30 likes 👁 1.2k views

Description

Adapter for the awesome Bambu Lab P1 / X1 / X1C / X1CC Filament Spool Switcher & Winder if you use AMS from Miklos Kiszely. Which allows to use it with 2,5 kg spools with a height of 100 mm and a diameter 53 mm. Filament: extrudr greentec pro (PETG, PLA etc. will work) Print settings for the "Aufsatz_2.5kg_spule": orientation: see picture layer height: 0.2 wall loops: 3 Top/bottom layers: 5 infill: 15% gyroid support: tree(manual)[ just support the very top of the diameter] Print settings for the "Adapter_2.5kg_spule": orientation: see picture layer height: 0.2 wall loops: 3 Top/bottom layers: 5 infill: 15% grid support: no ________________________________________________________________________________________________________________ Update: Version 2 which should be more firm. Print settings for the "Aufsatz_2.5kg_spule_V2": orientation: see picture layer height: 0.2 wall generator: arachne wall loops: 3 Top/bottom layers: 5 infill: 15% gyroid support: tree(manual)[ just support the very top of the diameter]

Originally published on Printables
