Adapter for rechargeable motion sensor LED lamp
by Troyjones · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Uploaded | Mar 20, 2026 |
⬇ 13 downloads
❤ 3 likes
👁 68 views
Description

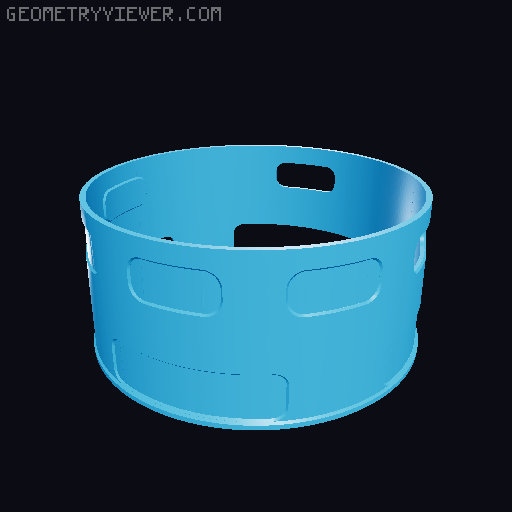

A swivel base adapter using rechargeable, motion-sensor LED lamp (Amazon) or now here (eBay) for use with Solar System Lithophane Planet Lamp Collection-205 by FritzPeppone . Make your globe portable and/or motion activated. LED lamp is also controlled by remote control. Examples shown printed using PETG material, 15% infill, with supports required for body and shroud parts. Dark material recommended for all parts except the threaded fitting to block light emitted by motion sensor. PLA is untested. Avoid excessive sanding of body and shroud mating surfaces to retain detent action. Bearings used (optional) are standard BBs (11/64" (.172"). A recess area for light filter film fits up to 6 layers (.06") of plastic film. A template is included. The shroud allows the motion sensor eye and charging port/switch to be visible or shrouded (4 positions with detent) See other files section for additional information.
Originally published on Printables
