Adjustable Base for Adjustable PCB Holder Tool
by APA 86 · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY |
| Triangles | 40.1k |
| Uploaded | Sep 29, 2024 |
⬇ 82 downloads
❤ 19 likes
👁 752 views
Description

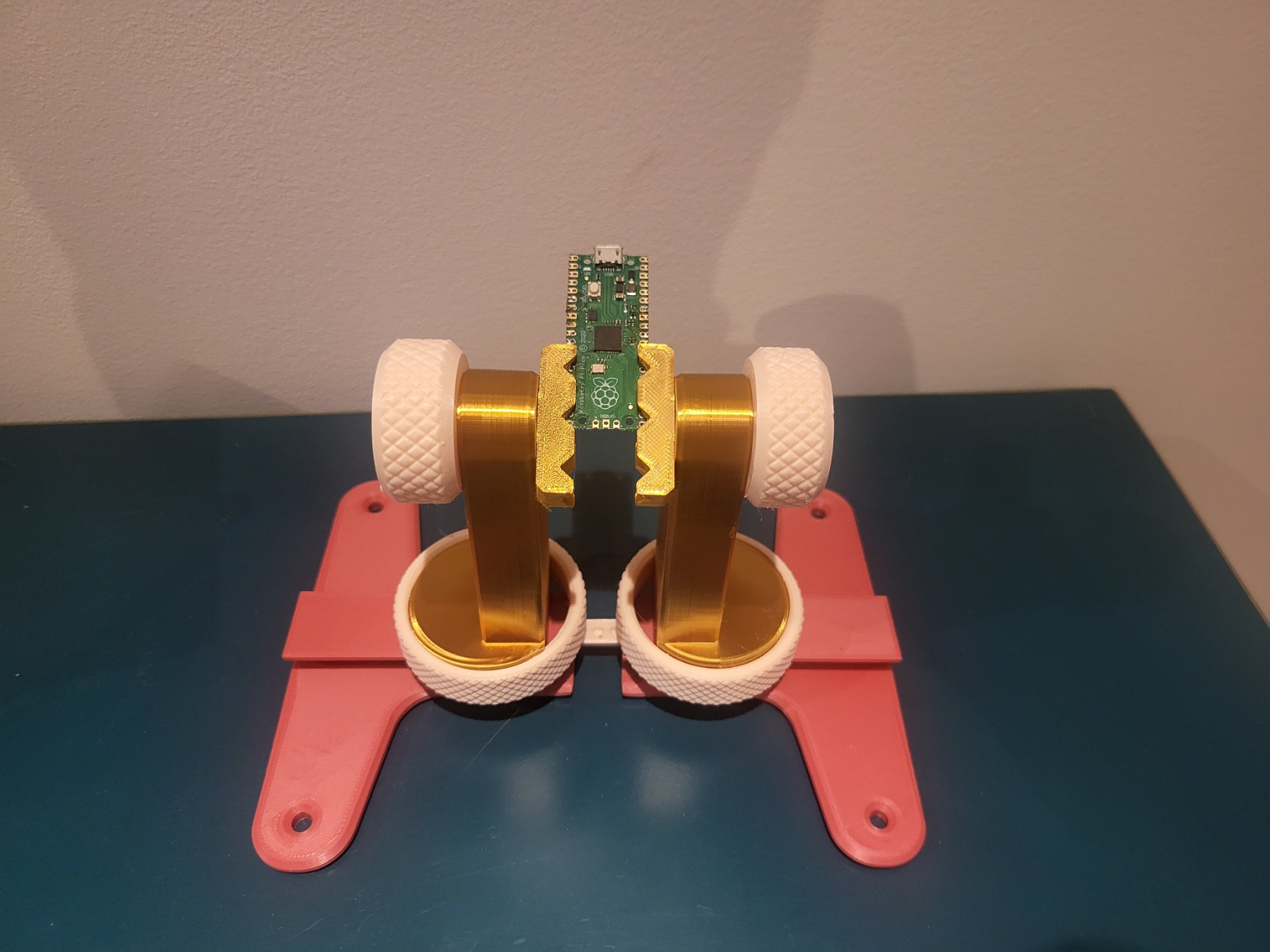

Adjustable Base for PCB Holder Tool to Fit Larger Bases on Smaller Printers and prints. The rest of the parts can be found at: PCB Holder Tool Intermediate base pending addition to allow for greater length.
AI Analysis: This is a mechanical device designed for holding and securing a circuit board during soldering operations. It features adjustable clamps that can be positioned to hold the PCB securely in place, with a base that provides stability and a mounting surface for the soldering process. The device includes a central mechanism that allows for precise adjustment of the clamping force to accommodate different PCB sizes and shapes.
Originally published on Printables
