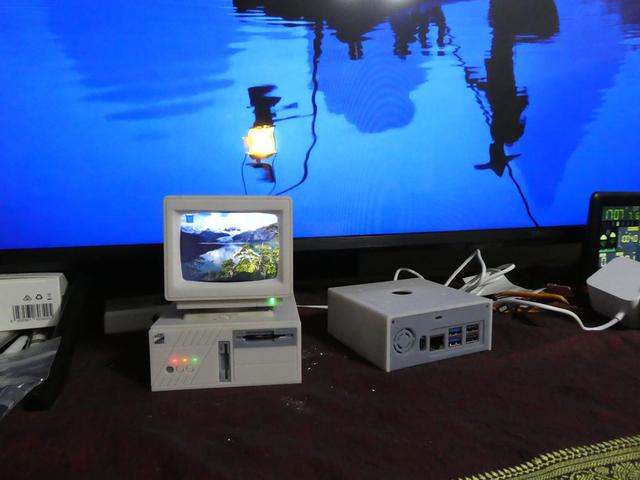

Adjustments for the Retro Desktop PC Raspberry Pi case V2 3D model thumbnail

Adjustments for the Retro Desktop PC Raspberry Pi case V2

by ChrisM · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY
Triangles104.2k
UploadedJun 7, 2025
⬇ 55 downloads ❤ 13 likes 👁 620 views

Description

monitor-front-wide2 is a slightly wider bezel so less pixels are hidden but hopefully not upsetting the aesthetics too much. monitor-back-sockets has cutouts for 5v USB-C connector and micro hdmi so it can be used as a standalone monitor. LOL ( monitor-back-nosockets has them covered) The intended sockets are USB-C and HDMI D4 . desktop_base_pi2_3_5_mod5 has a rear mount for a micro hdmi connector, this can be connected to hdmi2 by a flat cable similar to the monitor/hdmi1 (D1-D4 or D2-D4). An external monitor makes it a full-blown raspberry! (one cable will need D1 and the other D2 as the Pi5 connectors are very close together). Some cutouts were made in the 2nd fan mount. The Pi5 mounts were shifted slightly right (1/2 a hole). Yep my 5th iteration for the Pi5. sd_card_reader_drive_brace_fixed was repaired to remove illegal edges. All the files have been repaired by various means so they work correctly with Chitubox slicer for Elegoo resin printer.
