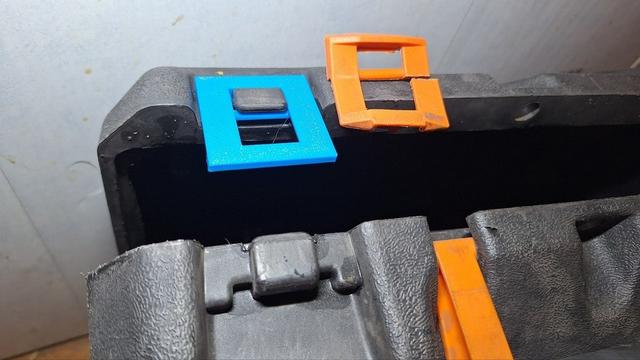

AEG BS18C2X cordless drill case replacement latch 3D model thumbnail

AEG BS18C2X cordless drill case replacement latch

by xsytes · via Thingiverse
FormatSTL
CategoryTools
LicenseCC BY-SA
UploadedApr 5, 2026
⬇ 3 downloads 👁 8 views

Description

A replacement latch piece for an AEG cordless drill case, specifically from a BS18C2X, but might possibly fit other ones. Much tighter than the original one! Printing: put on the flat side and use a flexible material like PETG with low/disabled cooling for better layer adhesion, 0.2 mm layers, best printed solid or with high infill% and perimeter count. For nicer bridges i suggest adding supports on all overhangs, it will only take a ~1 gram of material. The whole print takes about 15 mins. Note that it will be rather tight. You might need to bend the latch a bit the first few times to close it, but it will then lock quite easily
aeg tool case tool case latch
