AimTrak IR Bar Mount for Chewlix / Vewlix Arcade Cabinet (Adjustable Angle)

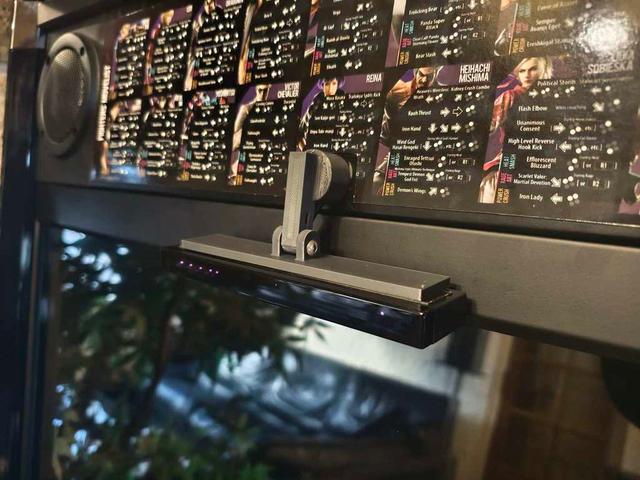

Hello everyone, I designed this IR bar mount for my AimTrak to install it on my Chewlix arcade cabinet. The model is 3D printed and works perfectly. You’ll need to drill a hole in the center of the marquee panel, 20 mm from the bottom edge. The hole should be around 21 mm in diameter. I recommend using a step drill bit for metal. The IR bar is attached using strong double-sided tape. This setup allows the IR bar to sit flush with the screen, so it doesn’t interfere when playing with other games. The tilt angle of the bar is adjustable. Hardware required: 1x M4 screw (20 mm) 1x M4 nut Double-sided tape. Print settings on my K1C: Material: PLA, ABS, PETG, etc. 5 perimeters (outer walls) 4 top layers / 4 bottom layers 30% infill Layers 0.2 or less Trees Supports
