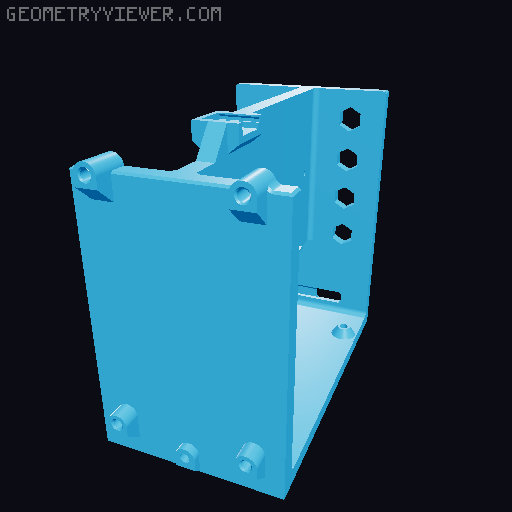

Air Quality / Emissions Sensor Array 3D model thumbnail

Air Quality / Emissions Sensor Array

by gomaed · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-SA
Triangles18.9k
UploadedNov 4, 2024
⬇ 47 downloads ❤ 15 likes 👁 1.2k views

Description

I wanted to build the awesome looking and functional sensor housing from Tom and bought the corresponding sensors and the display. Unfortunatly the display I got was 2,4inches, but the original model was designed for the 2,8inch variant. Since I liked the original design I got ahead and recreated it with the display I had now. Also made some changes to the sensor mounting, used a capacitive topuch button I had laying around and removed the front temp. sensor. Sensors I used: PMS5003S, Bosch BME680, ScioSense ENS160, SCD40
sensor airquality pms5003 airqualitymonitor emission
