Alternative holders with sliding door latch, no magnets required

by BucksDanny · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles916
UploadedNov 16, 2025
⬇ 74 downloads ❤ 30 likes 👁 798 views

Description

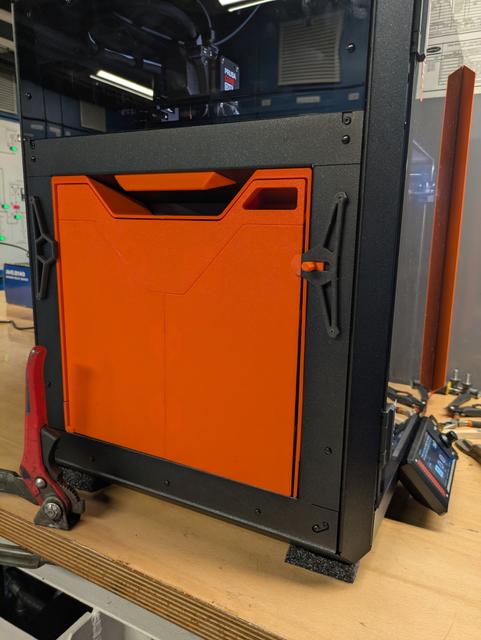

Designed a dual holder system to secure the side storage in place without magnets and lock the door with a latch as it keeps opening from vibrations. Requires machine screws (4x 5mmx2.5mm) or 4x M3x10mm allen bolts to mount. Remove 4 rivets from the side panel. Run the screws already one time through the model holes to cut thread and make mounting more easily. Fit the latch in the holder and mount against the casing while screwing in the screws from the back with along fine screw driver. Printed in Asa but PETG should also do the trick at 50% infill and a wall thickness of at least 3x0.4mm.
storage coreone coreoneupgrade
