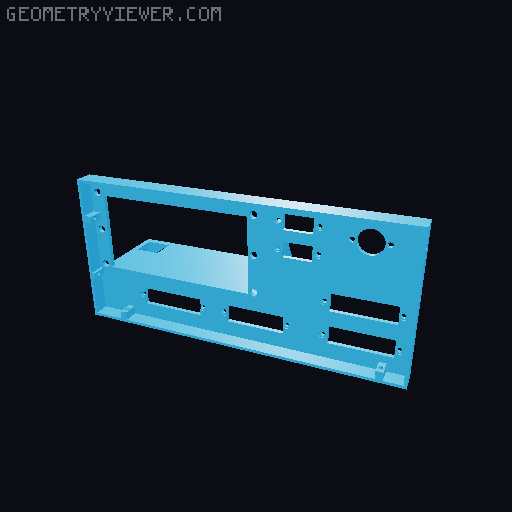

Amiga 3000 to Checkmate 1500 Kit

A printable kit to fit an Amiga 3000 motherboard into a Checkmate 3000 case. fit and secure the motherboard to the bottom of the case A floppy mounting bracket fit a TF4060 with an IDE drive redirected to one of the front panels of the Checkmate case Mount and secure the PSU to the back plate NOTE: You will need to source a few parts like screws and nuts . To redirect the joystick and mouse ports you'll need to find angled DB9 9P Male to Female cable ( https://www.ebay.ie/itm/184791814732 ) To redirect the cable , you'll need to find a Right-Angle 5-Pin DIN To 5-Pin DIN Cable (Like a Midi cable) I haven't yet added fittings for the Zorro card ad ons (I don't have any ad on cards for that) . Maybe someone else can do that or I'll get to it in time The standard zorro card is to high to fit in a Checkmate case. I need to redesign it or someone else is welcome to try This is an open source project, changes are welcome (get in touch with me) but no commercial use is allowed
