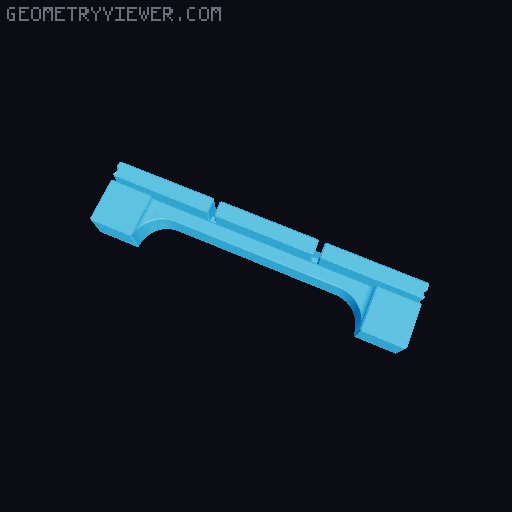

AMS Stand with brace mod

UPDATE : Added the Top Narrow model. This allows for the 2020 extrusions to be directly under the AMS. This saves a bit of space on either side of the AMS. Be sure to use the “narrow” braces too. If you use this, you will NOT be able to place a second AMS below it. This is for freeing up space under your single AMS. Used for the latest AMS unit as of June of 2024 (version 6 apparently). It has the 3 slots on the side and a different measurement between them. I printed mine in PLA HS grey. I turn off the AUX fan for all PLA. 2 walls and 20% infill. I used tree supports on the braces, none for the top and bottom. It helped with the overhang of the extrusion holes. The extrusions I used are the 400mm 2020 (20mm square). Created a double-sided mount too. This way you could mount an additional AMS next to yours with two more 400mm 2020 extrusions. Check out my filament dryer mount that fits right on the side of this stand - https://www.printables.com/model/918350-ams-stand-sunlu-filament-dryer-mount Download STEP files or re-model in OnShape here - https://cad.onshape.com/documents/dc6b4ba520dc8ffc2f41f24f/w/e4fced5cc61c9ca806cfd06e/e/14368087bed876d80bd3a73b?renderMode=0&uiState=66709ff812f79b112309eed1
