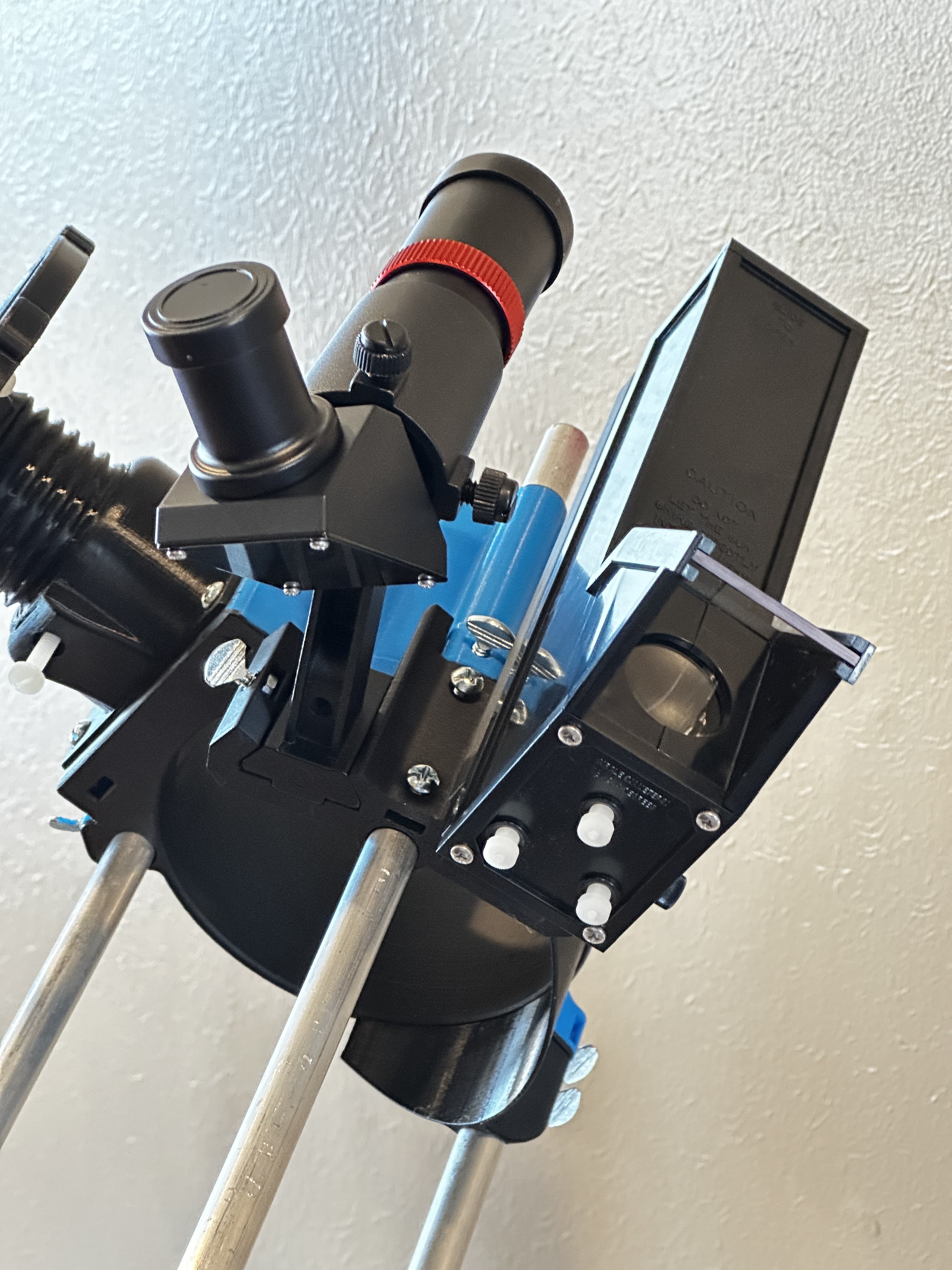

Angled Double Dovetail Mount for Hadley Telescope 3D model thumbnail

Angled Double Dovetail Mount for Hadley Telescope

by trgt · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles2.2k
UploadedDec 16, 2023
⬇ 36 downloads ❤ 3 likes 👁 431 views
⬇ Download STL 👁 View Details

Description

I've really enjoyed using Michaël Fortin's double dovetail mount but started to run in to issues when I got my telrad. My Svbony finderscope and the telrad were both too big to use the flat dovetail mount. This is a slight modification on Fortin's design that offsets the dovetails slightly to either side allowing for larger attachments. This printed well for me at .3mm layer height on a .6mm nozzle. I used four perimeters, but that's probably overkill.
AI Analysis: This is a mechanical component designed for mounting a telescope. It features a dovetail joint for secure attachment and includes a finderscope and telrad for precise aiming. The Hadley Telescope compatibility indicates it is tailored for astronomical observation, with a focus on stability and accuracy.
dovetail finderscope telrad hadley
