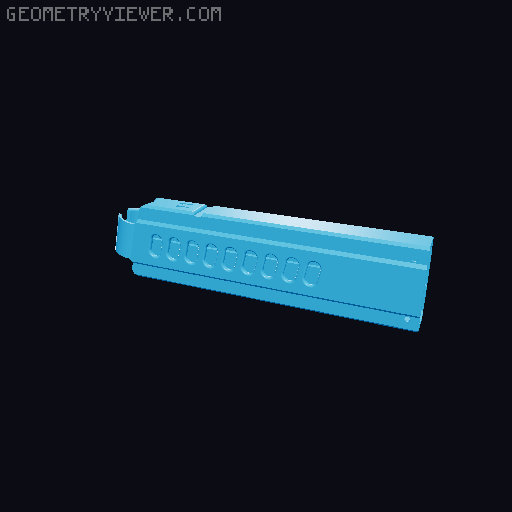

Angled Talon mag

Model can be printed horizontally with the dart count facing up. It will need support for the top lips and possibly a touch at the beginning and end of the mag roof (support on bed only). With the correct settings (0.25mm top support gap for my printer) it will peel away easy. I also printed the follower horizontally on the long edge, with support and brim. The model pictured (12 darts) uses a 15-darts talon spring I had spare. Works really well, but it's a tad strong and will squish the darts if left in for too long. Uses 4x M3x8mm capscrews to hold the bumper to the mag, which also acts as the spring stop. IMPORTANT I moved the side notch down by 1.25mm compared to what I've seen on other models. This brings the mag higher in the chamber and prevents the top lips from wearing the ram's o-ring prematurely. Works well for me, but l can make a “default” version if anyone asks. Changelog 23/01/2025: Added an 11 darts option, which is the smallest the Foxbat will accept. Added a ‘default’ version of the mag with the notch sitting higher. Refer to the ‘important’ section above for the why. Added a new smaller bumper, because.
