AnkerMake M5 5015 Fan Duct - No Supports
by anselor · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 243.7k |
| Uploaded | Jan 10, 2024 |
⬇ 95 downloads
❤ 13 likes
👁 503 views
Description
Tweaked the original model to add a few minor improvements. Adjusted some of the overhangs to be sloped and printable without supports. Added a single built-in support with a break-away point. Changed the vertical slots to be built on a single-layer bridge. The original model had odd uneven spots that I tried to smooth out a bit for a cleaner print Widened the slot in front of the screws so the Anker provided tools can reach through. Instructions are otherwise the same as the original model.

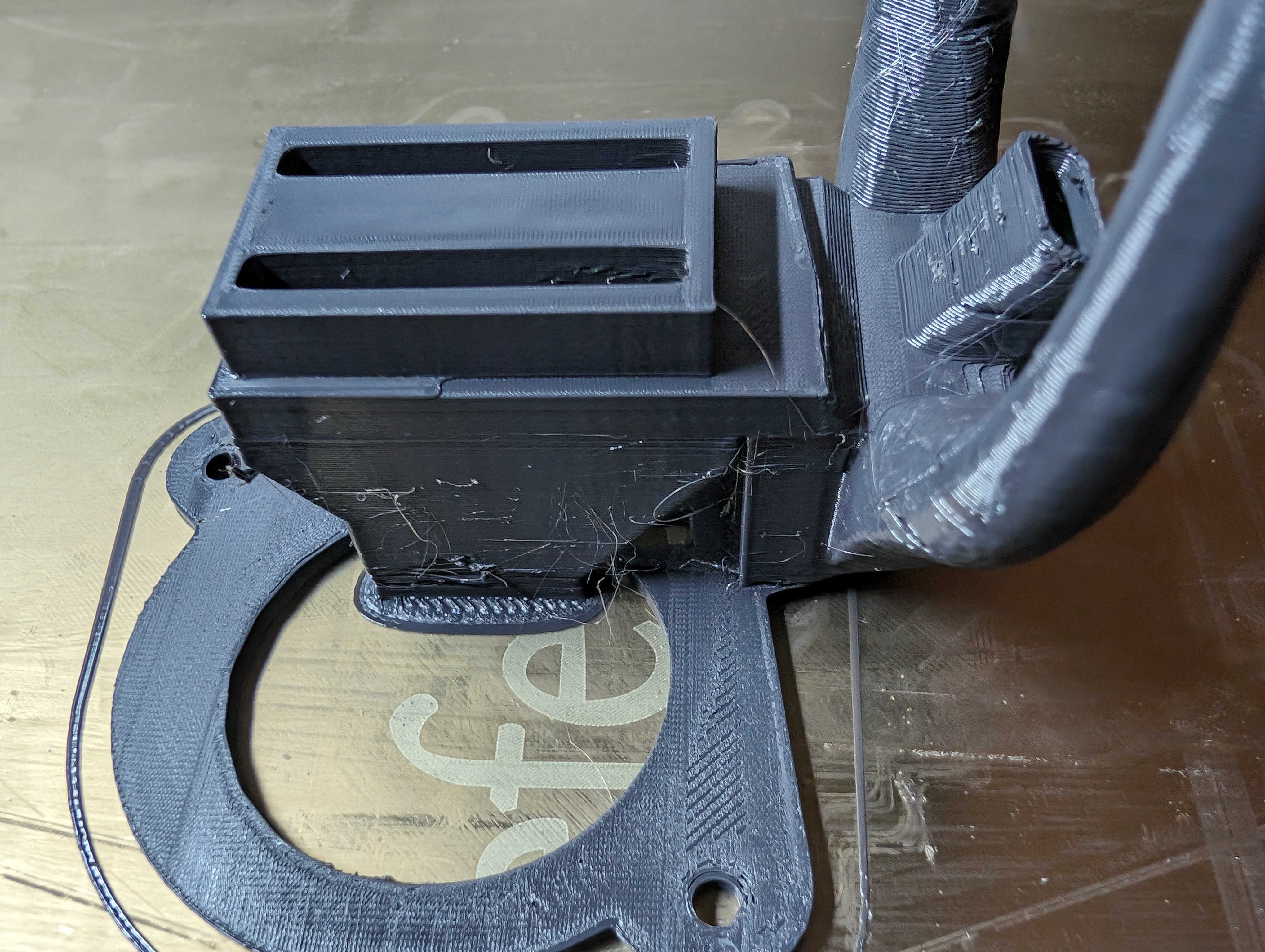

AI Analysis: This is a mechanical part designed for a fan duct system. It features a rectangular housing with two horizontal slots and a curved duct assembly. The part is constructed from a solid black material and includes a circular base with a cutout for mounting. The design is intended to fit into a fan duct system to guide airflow and provide structural support.
Originally published on Printables
