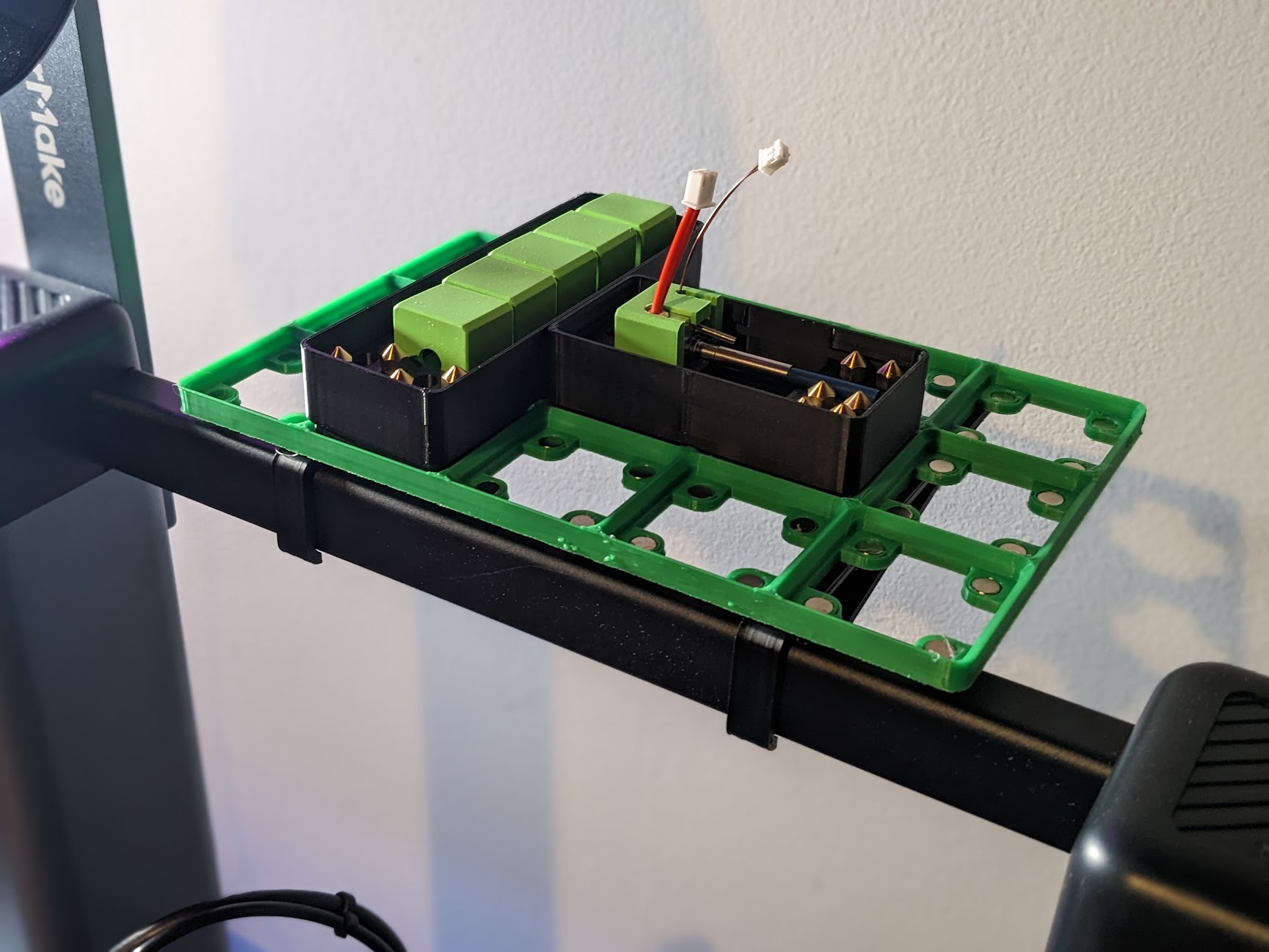

AnkerMake x Gridfinity - Shelf (M5 & M5C) 3D model thumbnail

AnkerMake x Gridfinity - Shelf (M5 & M5C)

by SeeSharpist · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles23.4k
UploadedSep 19, 2023
⬇ 369 downloads ❤ 93 likes 👁 4.6k views

Description

I recently discovered Zach Freedman's open Gridfinity standard and love it. I saw a post on recently for a shelf for the M5 and wanted something to put my spare nozzles, hot end, and silicone socks in using the Gridfinity standard. So I decided to create a Gridfinity shelf and storage bins for the AnkerMake spare parts. This 3x5 shelf remixes RIP_Plo-Koon 's lightweight magnetic bases and requires much less filament that the original Gridfinity bases. I attached the base plate to the supports magnetically, so the entire shelf can be removed and used alongside other Gridfinity base plates. Currently this uses 74, 6x2mm magnets (60 for the plate + 8 for the underside + 6 in the supports) All pieces can be printed without supports or brims. I used PLA+ on my AnkerMake M5. Let me know what else you'd like to see for the M5 or M5C, and if this is useful! Check out my other AnkerMake M5 Gridfinity Bins: 5x Silicone Covers + 8x Nozzles Spare Hotend + 6x Nozzles Full 10-Pack AnkerMake Nozzles w/ Size Labels EDIT 4/25/23: Added another support, sized half of the tray per request EDIT 9/15/23: Added M5C support! Three quarter and half length supports
AI Analysis: This is a mechanical part designed for electronic storage, featuring a modular grid structure with integrated magnets and slots for organizing components. It is intended to hold and secure electronic parts, such as batteries or connectors, in a structured manner. The green baseplate and black compartments provide a secure and organized space for electronic components.
nozzlestorage gridfinity gridfinitybaseplate ankermakem5 ankermake gridfinitybase gridfinitymagnets ankermakem5c
