Another sim racing button box
by iivan004 · via Printables
| Format | STL |
| Category | Electronics |
| License | Public Domain (CC0) |
| Triangles | 15.3k |
| Uploaded | May 9, 2025 |
⬇ 27 downloads
❤ 10 likes
👁 394 views
Description
I have printed it from PLA+, and it is reasonably sturdy. I have followed this guide for the buttons. https://github.com/djpr1me/Button-Box?tab=readme-ov-file The LED matrix is 8x8 https://fr.aliexpress.com/item/1005005790339147.html?spm=a2g0o.order_list.order_list_main.12.1f135e5bQCrCDx&gatewayAdapt=glo2fra Buttons: https://fr.aliexpress.com/item/32857809262.html?spm=a2g0o.order_list.order_list_main.41.1f135e5bQCrCDx&gatewayAdapt=glo2fra Start/Stop https://fr.aliexpress.com/item/1005005325215803.html?spm=a2g0o.order_list.order_list_main.82.1f135e5bQCrCDx&gatewayAdapt=glo2fra Encoders: https://fr.aliexpress.com/item/10000056483250.html?spm=a2g0o.order_list.order_list_main.46.1f135e5bQCrCDx&gatewayAdapt=glo2fra Double switches: https://fr.aliexpress.com/item/1005007094644637.html?spm=a2g0o.order_list.order_list_main.36.1f135e5bQCrCDx&gatewayAdapt=glo2fra Rocker switch: https://fr.aliexpress.com/item/1005007379166194.html?spm=a2g0o.order_list.order_list_main.31.1f135e5bQCrCDx&gatewayAdapt=glo2fra The ugly logo is printed on a paper and used double sided scotch, so for sure you can be more creative!

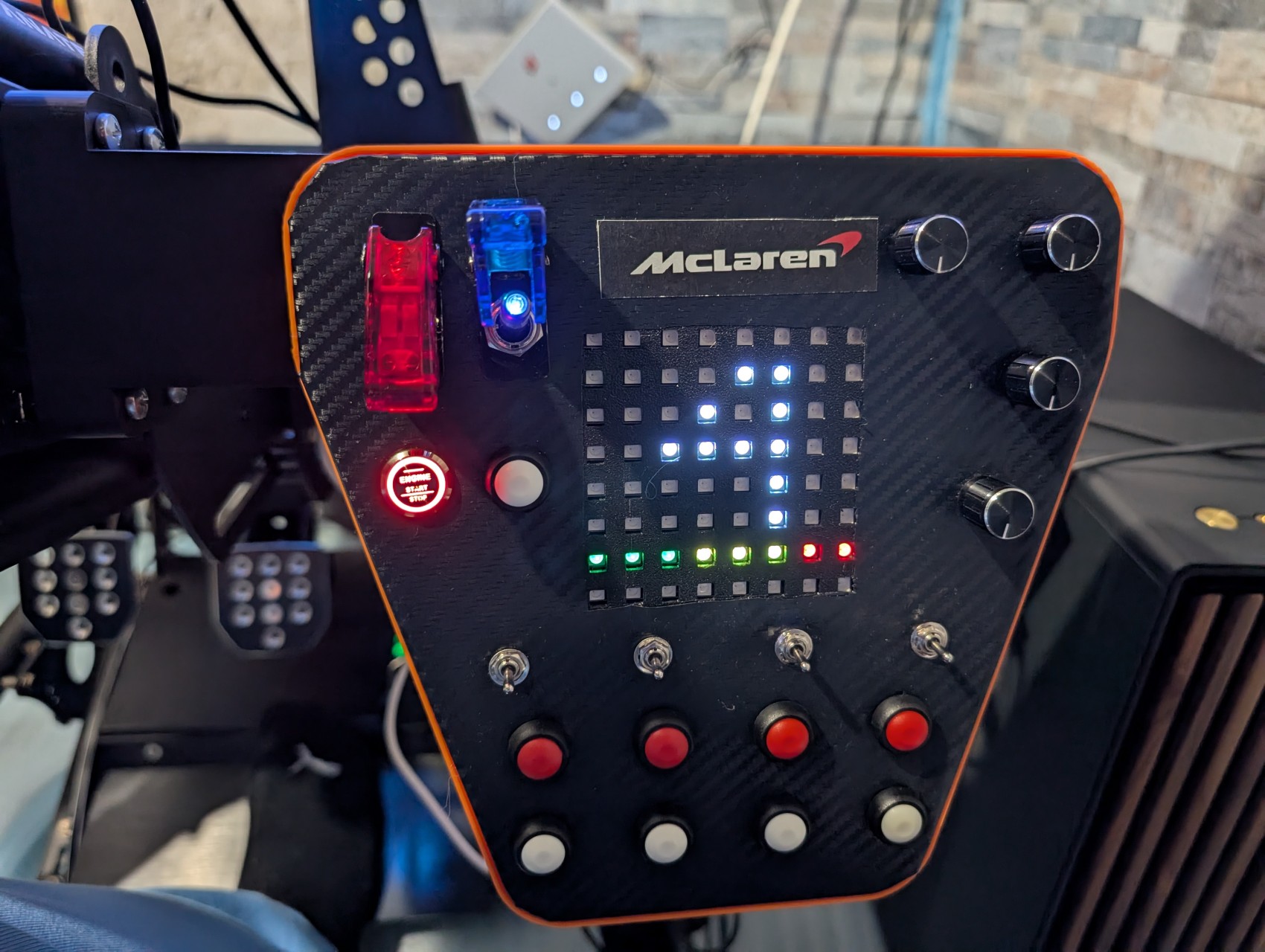

AI Analysis: This is a control panel for a sim racing setup, designed to mimic the steering wheel controls of a race car. It features various buttons and knobs for adjusting settings, with a prominent 'McLaren' logo indicating it's part of a racing simulation environment. The panel includes a digital display with illuminated indicators and a red emergency button, all set against a carbon fiber background.
