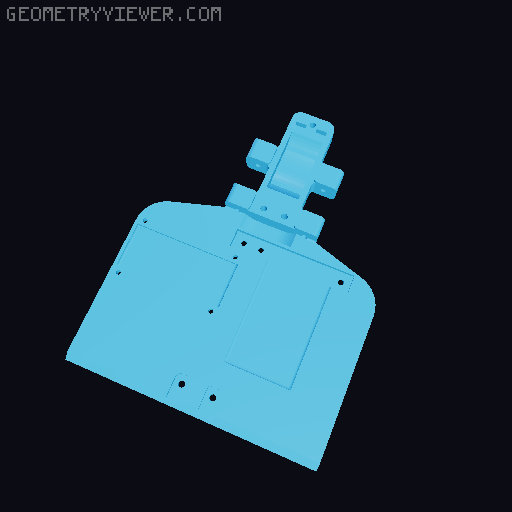

[ARCHIVE] Robak 2 Modpack .001 3D model thumbnail

[ARCHIVE] Robak 2 Modpack .001

by robaki · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-NC-SA
Triangles4.3k
UploadedNov 25, 2023
⬇ 124 downloads ❤ 29 likes 👁 1.2k views

Description

[OBSOLETE] Please note that these model files are outdated. For the latest version, use the most recent files from the original Robak 2. https://www.printables.com/model/119715-robak-2 ------------ This package contains upgrade parts for the Robak 2 Three-piece DiffCase MOD better gear mesh inside the case extended gear life more rigid construction must have for high power 3S setups v2.0 Tower is not compatible with this case Thanks to @Dongle - the originator of this design. — Chassis MOD servo mount moved 12mm to the front more space for longer motor or bigger ESC fits motors up to 3660 (60mm in length) supports diff case from both sides requires Three-piece DiffCase MOD 📷 Image redacted — claim this model to add your own media — HingePinBrace MOD brace is now flush to the chassis — BatteryMountBuckle MOD separated parts — ServoMount MOD added cutout for DumboRC receiver — SteeringBlocks MOD reinforced levers — MotorPlate MOD added cutout for easier motor swapping — CentralSupport MOD bigger driveshaft hole — CarrierHubs MOD added chamfer —
rccar robak robakrc
