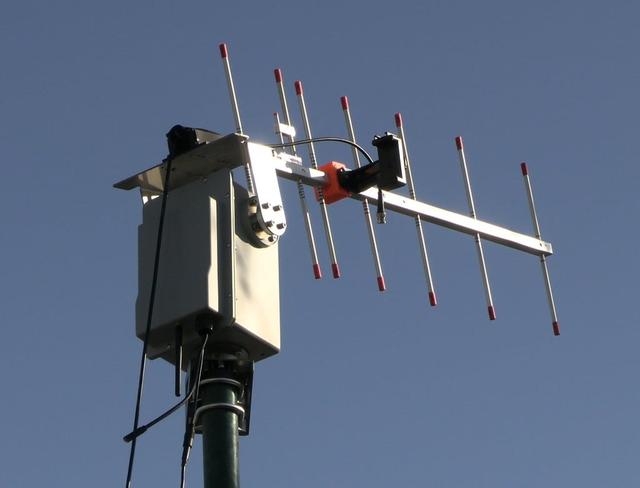

Arrow Antenna to Discovery Drive Adapter 3D model thumbnail

Arrow Antenna to Discovery Drive Adapter

by saveitforparts · via Thingiverse
FormatSTL
CategoryGadgets
LicensePublic Domain (CC0)
Triangles10.8k
UploadedApr 15, 2026
⬇ 3 downloads 👁 29 views

Description

Allows the Arrow dual-band antenna to be mounted on a Discovery Drive azimuth/elevation rotor. The handle of the Arrow goes in the slot, and the base plate bolts to the Discovery Drive's rotor plate. I used a prototype Discovery Drive with multiple mounting holes, but this should match the bolt pattern for the Discovery Dish. Two zipties are needed to secure the Arrow to the adapter plate.
