Articulating Camera X-Axis Left-Side Mount for Sovol SV06 (Plus)

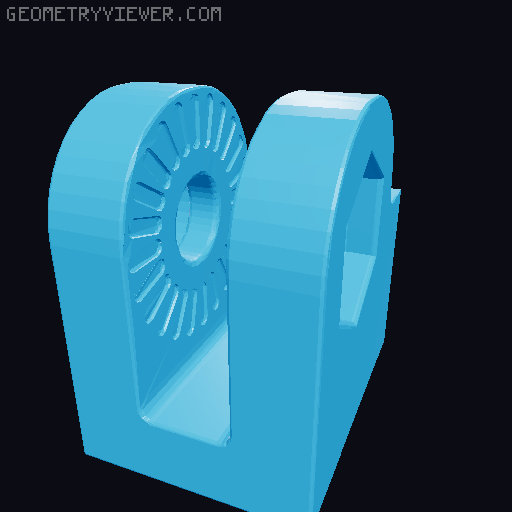

📷 Image redacted — claim this model to add your own media Mount a camera to move with your Sovol SV06 or SV06 Plus' Z-axis with this screw on mount! This part screws onto the the left side X-axis stepper motor housing, and provides an attachment base for Sneaks' articulating camera mount system . Models for both male and female articulated camera mount bases are provided. Hardware A single M3x10 bolt is needed to attach the mount to the stepper motor housing. Printing and installation These parts print as oriented in the model files with no supports and no special instructions. Once printed, screw the part onto the left side X-axis stepper motor housing using the M3x10 bolt. Then, attach something to the articulated camera mount! Remixing For further remixing, I've also included the blank piece I created to attach the articulated camera mount links onto. I used OpenSCAD to glue these parts together. That model file is included as well. With all of the source files in the same directory, open sv06-xaxis-mount-right.scad in OpenSCAD. The included articulated mount attachment base pieces were prepared in TinkerCAD. See also I also have a SV06 (Plus) X-axis right side mount! I used Zach's remixed articulating camera mount thumb bolt heads with steel M5x20 bolts. I used areyouferretti's articulated mount tripod bolt to mount a Logitech C920 webcam to my articulated mount.
