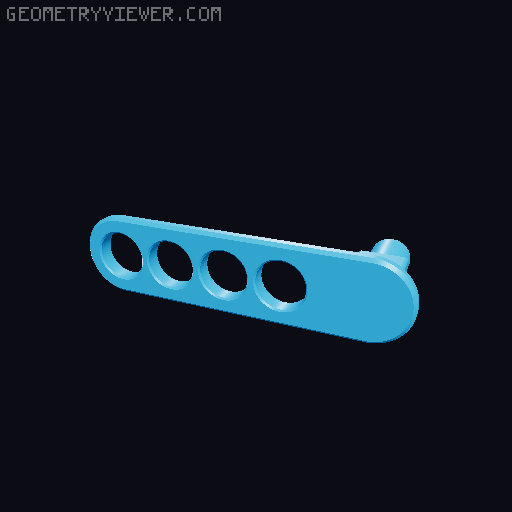

Assemble after print - Cascade card wallet with levers on both side remix 3D model thumbnail

Assemble after print - Cascade card wallet with levers on both side remix

by Junaling · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles14.6k
UploadedApr 14, 2023
⬇ 140 downloads ❤ 19 likes 👁 1.5k views

Description

I find the original a bit tight/tough to dispense all cards in the stack, also there's not enough space to identify and pick a card. My solution, dispense half the stack on one side. I have to model this from the ground up to apply my improvements/changes, taking the original look and design as reference. This model is about 4mm shorter than the original Thanks to the original designer and all the remixers. Print in PETG for the best wear-resistance and flex. Parts for 6 or 8 cards provided. Parts prints flat with no support needed. For 6 cards: 1x body6, 2x button6, 2x fan3, 2x lever6-xxx For 8 cards: 1x body8, 2x button8, 2x fan4, 2x lever8-xxx Dry fit parts, sand/file if necessary before press fitting. Use c-clamp when pressing button and lever if necessary. When using, fans can/will collide, use cards to push them to slide in place. Enjoy!
creditcard slimwallet creditcardwallet 3dprintedwallet ridgewallet cardwallet
