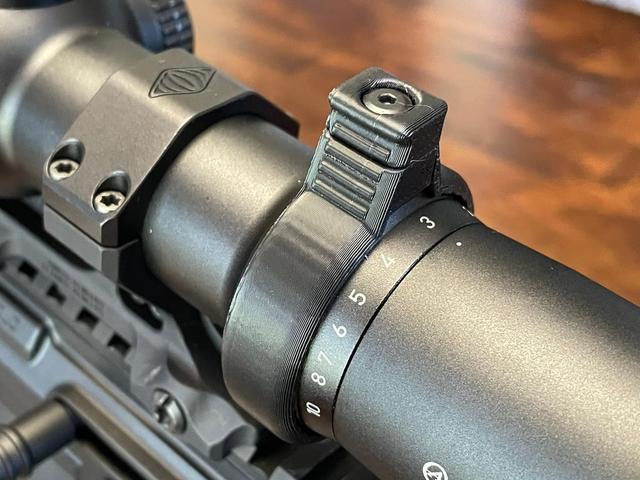

Athlon Scope 34mm Throw Lever 3D model thumbnail

Athlon Scope 34mm Throw Lever

by Pattersaurus · via Thingiverse
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles8.2k
UploadedApr 7, 2026
⬇ 2 downloads ❤ 1 likes 👁 9 views

Description

This is a throw lever for my Athlon Helos 1-10x 34mm Scope. Thought others might find it useful. It's a modest rise of 12mm over the length of the existing stubby lever on the scope. I don't like tall throw levers. This also has a relief cut into the bottom of the ring for the screw that Athlon includes on the bottom of the magnification ring on this particular scope. I'm not sure if they include it on any other 34mm scopes. Hardware needed: one M3x8mm button head screw one M3 brass insert, 5mm in length. I recommend printing with ABS or some high strength filament.
