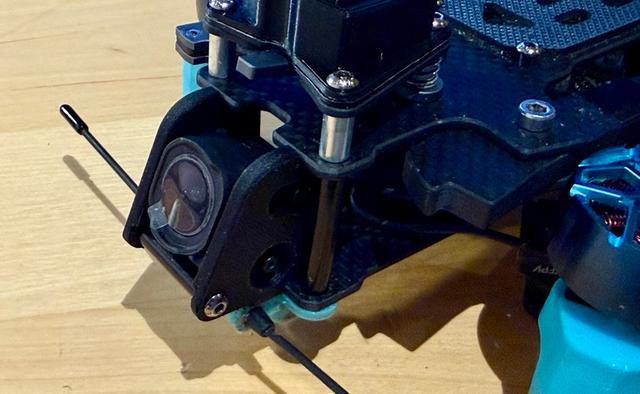

Axisflying Kolas 7” DJI O4 Pro Camera Mount 3D model thumbnail

Axisflying Kolas 7” DJI O4 Pro Camera Mount

by abbottini · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles35.8k
UploadedApr 17, 2026
👁 7 views

Description

You have a Axisflying Kolas 7" and you have the sudden urge to install a DJI O4 Pro camera into it. This mount is for you! The STL can be used for a pair, but mirror one of them on the X-Axis to ensure a left & right pair Print with bolt indents facing upwards Print with supports enabled (standard non-tree) Ideally print with PET-CF, but PLA holds rigidity if PET-CF not available Post-print, remove supports carefully and attach camera using four standard DJI bolts One gotcha - if you install the O4 Pro camera, the stock cable that comes with the O4 Pro is not long enough for the Kolas 7" - you will need to replace it. Enjoy.
axisflying Axisflying DJI O4 Case Axisflying O4 Housing DJI O4 PRO DJI O4 Pro Camera
