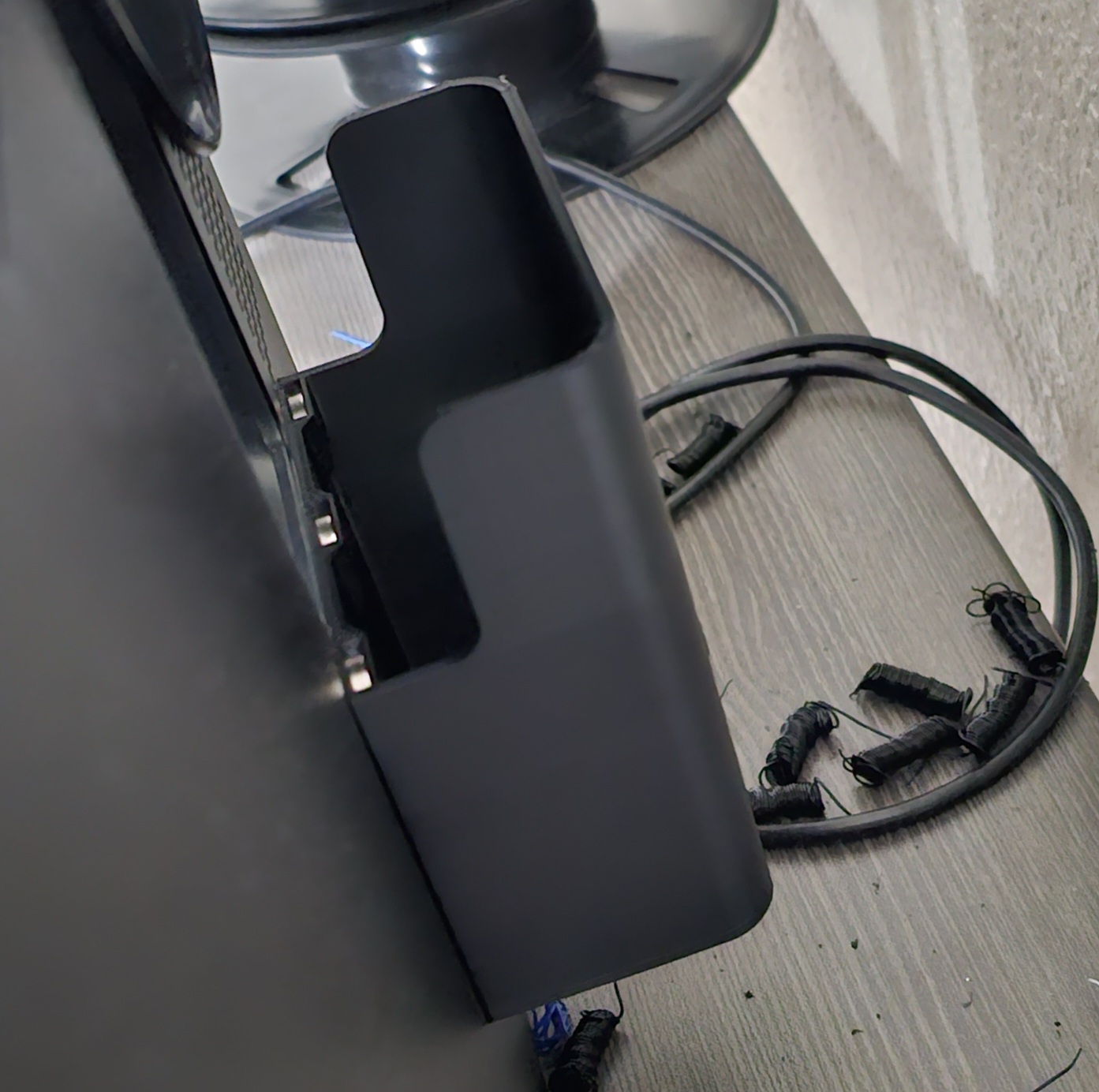

Bambu Lab P1P Compact Purge Bucket (magnetic) - REMIX

This is nilson_fx's magnetic poop chute accessory for the Bambu Lab P1P, but with the Bambu Lab logo. I used Brody's Bambu Lab logo SVG file. I started by importing the waste bin into Fusion360. Then, I imported the SVG and extruded it into a shape. I scaled it to a decent size and aligned the logo with the back of the bin. As recommended in the original model, use 10mm*3mm magnets held in place by glue and make sure to test proper orientation before securing them into the slots. This will print best at 0.1-0.12mm layer height. I suggest using at least 3 perimeters and 4-5 top and bottom layers. This should not require any supports and you can even try to increase the external wall line thickness by 0.02-0.03 to clean up the overhang portion a tiny bit. You can also try using arachne slicing if you wish. I also recommend pointing the logo towards the aux fan if you have it, and also adding a purge tower, so the model has uniform cooling. Please respect the original author's license preferences.
