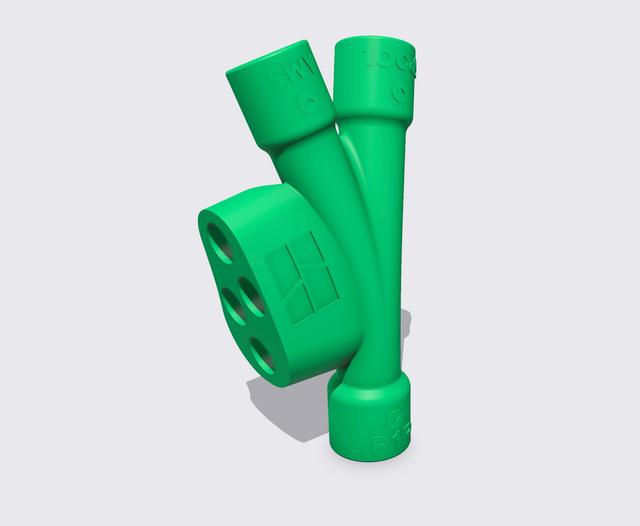

Bambu Lab P1P/X1 Y-Splitter with PC4-01 (PC4-10)pneumatic connector , 6*3 magnets and magnetic base 3D model thumbnail

Bambu Lab P1P/X1 Y-Splitter with PC4-01 (PC4-10)pneumatic connector , 6*3 magnets and magnetic base

by sh Chow · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles276.3k
UploadedFeb 13, 2023
⬇ 357 downloads ❤ 55 likes 👁 3.0k views

Description

Remix : 1.logo X1 → P1P 2.improve filament plug phenomemon 3.add a magnetic base with 2 6*3 magnets BOM : 1.glue 2.6*3 magnets X7(N52 will be better) 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Print Material: PETG (optimal) - PLA (best) Layer height: 0.08mm (optimal) - 0.12mm (best) Walls: 4 (highly recommended) Infill: 25% Infill pattern: Grid Enable Support: YES Support Type: Tree (auto) Support Top Z distance: 0.45mm (this setting is to allow easy removal of the support) Support/object XY distance: 0.5mm (this setting is to allow easy removal of the support) Brim Type: Auto (highly recommended)
bambulab x1c p1p
