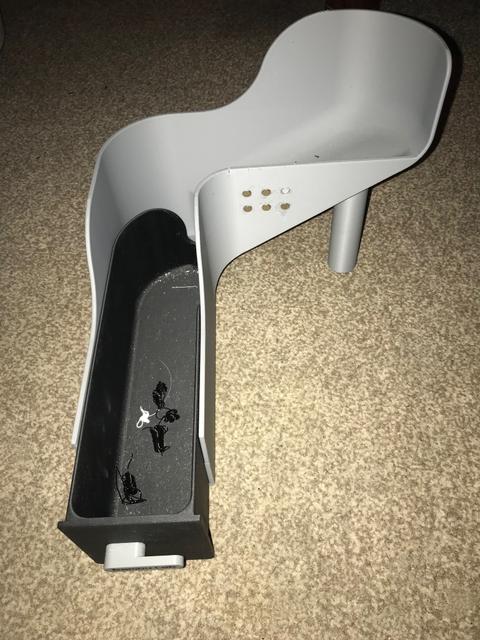

Bambu Lab X1 Poop Bucket Drawer

Firstly, Many thanks to Mikyleee for the Original Design ( https://www.printables.com/model/398786 ) I came across a few other remixed versions with an added drawer but most had made the angle of the waste slide to shallow and I wanted to keep the original angle. When printing the drawer you need to change the Orca or Studio slicer to print the Z max height currently set to 250mm (standard) to 253mm this will allow the drawer to be printed front face down and you also need to either paint supports ( Tree Manual ) or set it to auto - your choice. The main Section of the Chute can be printed without support. The handle is printed face down and you can colour fill the lettering ( your Choice ) you will need a brass insert for an m3 bolt and short m3 x 8mm bolt . IMPORTANT - Make sure you have no debris in the bottom of the printer - by which i mean in the recess's where the front 2x linear rod bearings disappear into - trust me when watching the drawer nearly finish printing you will think no way this is going to end good after such a long print - but it will. Hope this helps. ps One of the magnets is still on the back of the printer my gluing skills suck! You also Need 6 off 6mm x 2mm Magnets for the main body. Update Added a Handle v2 file for anyone printing with a 0.2 Nozzle.
