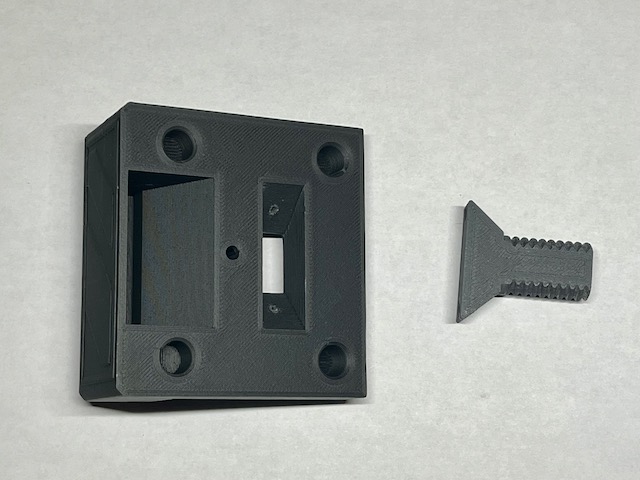

Base KnifeBlock with improved bolt 3D model thumbnail

Base KnifeBlock with improved bolt

by rob · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles4.3k
UploadedFeb 18, 2024
⬇ 129 downloads ❤ 20 likes 👁 590 views

Description

Printed the base at 0.3mm layer height 15% infill and two perimeters for speed and the bolt at 0.1mm layer height 15% infill and 4 perimeters for strength and precision for the threads. The original nut holding the clamp should be printed at 0.1mm also. The bolt insert can be fixed in place with two 2mm self tapping screws if one gets annoyed of it being loose. For now i didn't manage to rip the bolt apart, unlike the original design which i trashed twice during initial assembly 🥴 Thanks a lot to the original creator of the design 👍

Originally published on Printables
