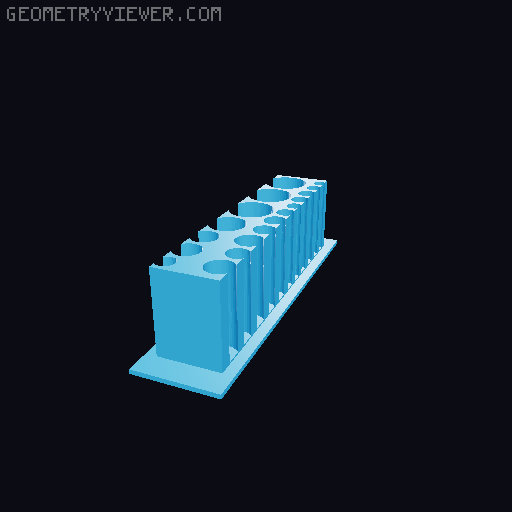

Battery organizer for classic and cell batteries
by Zizacek · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC-SA |
| Triangles | 6.6k |
| Uploaded | Oct 17, 2023 |
⬇ 149 downloads
❤ 9 likes
👁 992 views
Description
I borrowed two of the models here and modified them to suit my needs. You can store AAA (32 pcs), AA (40 pcs), C (5 pcs) and E23A (12 pcs) batteries with the basic case. But since most of us also use button batteries, I borrowed another model, adjusted the size to fit in its place and has the following slots: 1x 6.15 mm (AG0/LR63/LR521) 2x 7.15 mm (AG1/LR60/LR621, AG4/LR66/LR626) 3x 8.25 mm (AG2/LR59/LR726, AG3/LR41/LR736, AG11/LR58/LR721) 1x 8.3 mm (AG5/LR48/LR754) 3x 9.8 mm (AG6/LR69/LR921, AG7/LR57/LR926, AG9/LR45/LR936) 4x 11.9 mm (AG8/LR55/LR1120, AG10/LR54/LR1130, AG12/LR43/LR1142, AG13/LR44/LR1154) 1x 16.4 mm (CR1620) 3x 20.4 mm (CR2016, CR2025, CR2032) see original schematic below. 📷 Image redacted — claim this model to add your own media I supply two more versions of the roof, Czech and English. Print at 0.2mm and 15% infill. Print time is around 15 hours. Thanks go mainly to the authors of the original models.
Originally published on Printables
