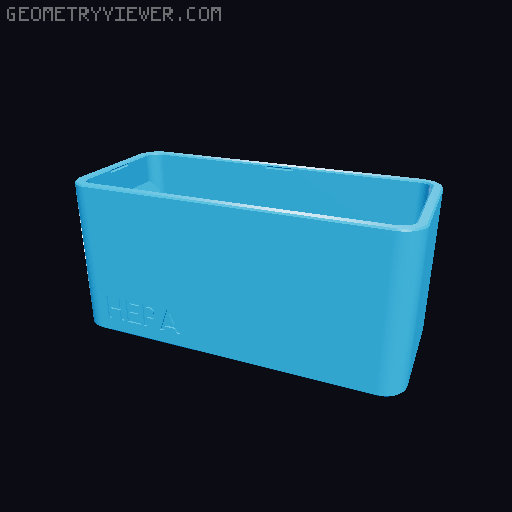

BentoBox V2 Slim for K2 Plus

I recently receive my K2 Plus and wanted to add the BentoBox. The original version does not fit inside, but fortunately it is just a matter of resizing the external dimensions in order to fit correctly, so that is what I did. The internal dimensions are all unchanged. This also means that the magnets are too big to work for this setup, so I redesigned the connections between parts. In the bottom of the K2 Plus, in the back right corner are two screw which I used to secure the BentoBox to the bottom of the case. Due to the nature of physics, this would naturally force the box to lean into the direction of the screws and into the bed area. So I've added a 1.5 degree slope on the bottom of the print to force the entire box to lean further away from the bed and flush to the wall of the chamber. Due to the height of the build chamber, there is also room to allow a taller carbon section, so check out my double height carbon chamber From the original you will still need to get the cmag parts, so please support thrutheframe by visiting the original page to download and like. I want to always keep my designs free for anyone who wants to use them, but this does take time and effort. So if my designs are worth something to you, please feel free to buy me a beer
