Better hinges for enXLosure Removable Door

by Peter Main · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles13.3k
UploadedSep 3, 2024
⬇ 58 downloads ❤ 11 likes 👁 331 views

Description

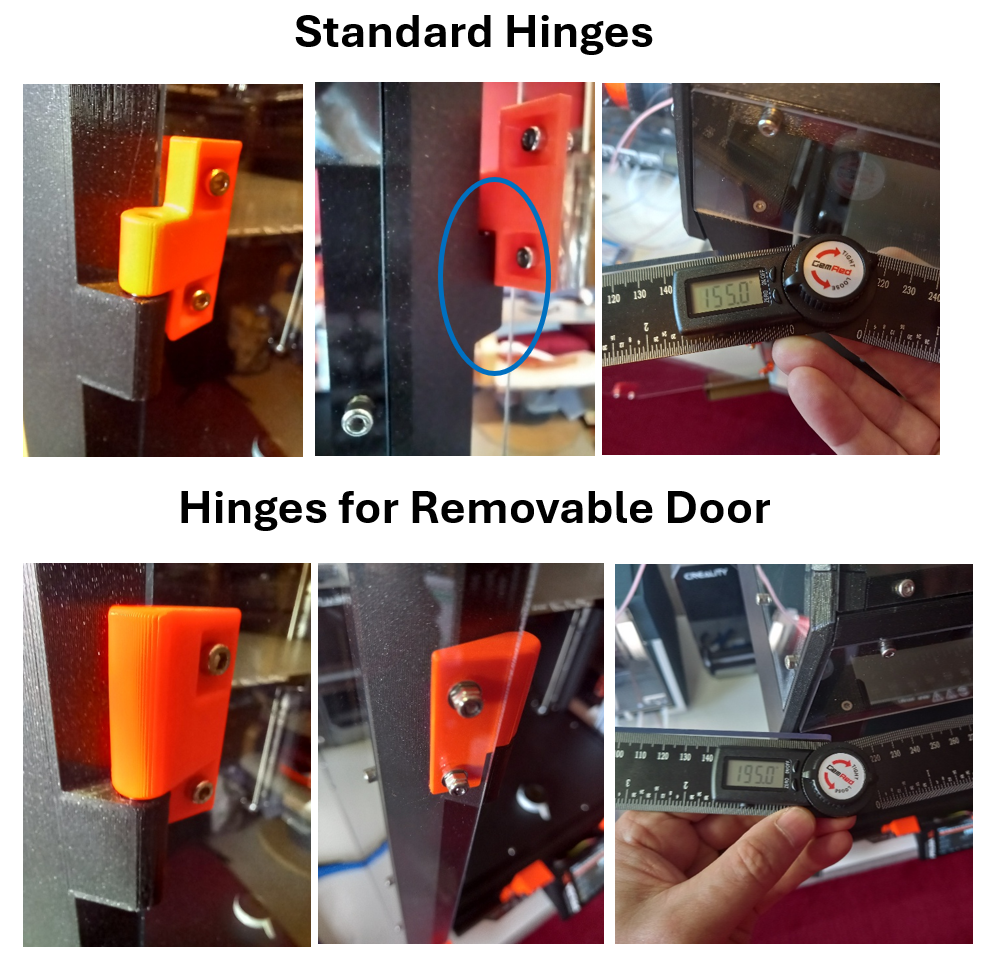

The removable doors for the EnXLosure by @JFet are an excellent idea. But, by sticking with the standard hinges, the doors only open to about 155°. These improved hinges have a minor change that avoids the binding on the front beam allowing the doors to open to a full 195°. They are also stonger and allow longer M4 bolts to be used (M4x40 or 45). I also think they look better as the end of the bolt doesn't show out the top.
door enclosure hinge stronger removable enxlosure
