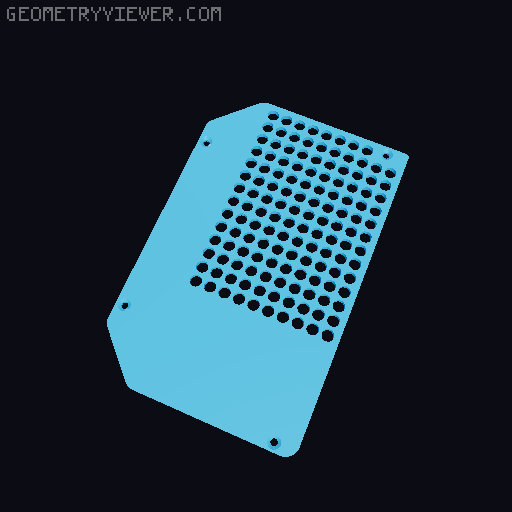

Big Einsy case

I created a bigger and reversed einsy case for better cable management and airflow Fits on Prusa MK3 Prusa MK3s Prusa MK3s+ To assemble everything you need: 6x M3 Square nuts (4x Cover and 2x Cablecover 1 and 2 ) 4x M3 nuts (Einsyboard ) 4x M3x10 countersunk screws (Cover) 4x M3x10 screws (Einsyboard) 4x M3x8 screws ( Case to aluminium frame) 2x M3x25 screws ( Cablecover 1 and 2) 2x zip tie 2,5x1,0 mm (Heatbed cable) ASSEMBLING # Fasteners 1 Insert the zip tie for the heatbed cable before you assemble everything! 📷 Image redacted — claim this model to add your own media 1x zip tie2 Insert the M3 nuts on the backside of the case to attach the einsyboard 4x M3 nuts3Attach the Einsyboard with the screws to the case4x M3x10 screws4Mount the case to the aluminium frame of the printer4x M3x8 screws5Insert the heatbed cable bundle including the textile sleeve in the case 6Plug in the heatbed cables to the board and tighten the zip tie 7Connect the extruder cable bundle and the PSU cables to the board 8Mount the extrudercable cover part 1 to the case2x M3 square nuts9Connect the X-Axis cable to the einsyboard 10Mount the extrudercable cover part 2 to the case2x M3x23 screws11Attach the cover to the case4x M3x10 countersunk screws Einsy connections 📷 Image redacted — claim this model to add your own media PSU and heatbed power cable connection https://help.prusa3d.com/en/guide/8-electronics-assembly_174100#175093 FAN connection (optional) 📷 Image redacted — claim this model to add your own media Print instructions Select "Supports from build plate only", no additional supports needed. Updates 20.04.2023 New revision with a lot of updates. To use this you have to print everything again. Parts are NOT interchangable to the old revision! 30.10.2022 Adjusted the thickness of the “einsycase_cable_cover_2” part. Instead of 23mm long screws you can now use 25mm long screws. 30.04.2021 The screwable cover has now two holes for the extruder and x-axis motor cable. To assemble you need two M3x23 screws 📷 Image redacted — claim this model to add your own media 02.12.2020 Much easier assembling of the extruder cables with the screwable cable cover 📷 Image redacted — claim this model to add your own media 30.10.2020 Additional cover for 40x40 fans 20.06.2020 New cover 18.06.2020 Slightly bigger hole for extruder cables Two more air vents 15.06.2020 Case Cover: Hole for x-axis cable higher Einsy Case: Improved holes for square nuts
