Big Tree Tech ADXL mount for the Hero Me Gen 7
by Neophyl · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 4.3k |
| Uploaded | Nov 10, 2023 |
⬇ 53 downloads
❤ 10 likes
👁 389 views
Description

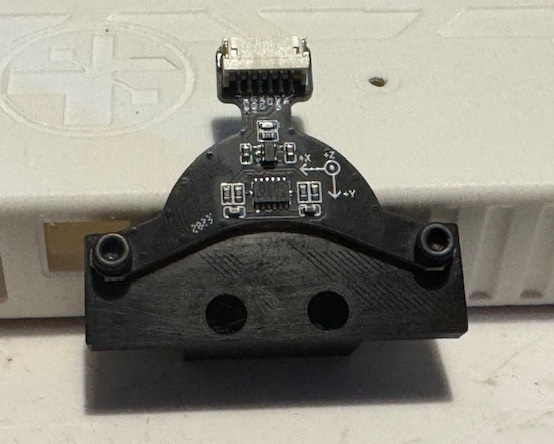

I recently upgraded my Elegoo N3 Max to Klipper and wanted to configure Input Shaping. I choose a BTT Pad 7 for the task. I had previously upgraded my extruder to the Hero Me gen 7 which has a variant for mounting the adxl sensor. However the adxl sensor which comes with the Pad7 has different mounting points spaced 44mm apart. The largest adapter on the Hero Me files was for 35mm. So I remixed the adapter to hold the larger BTT version. Hopefully someone else will find it useful.
AI Analysis: This is a mounting bracket for the ADXL345 accelerometer sensor, designed to securely attach the sensor to a device. It features a robust structure with two mounting holes and a connector interface for electrical connections. The bracket is specifically engineered for use with the Hero Me Gen 7 gaming console, providing a stable platform for the sensor to function properly.
Originally published on Printables
