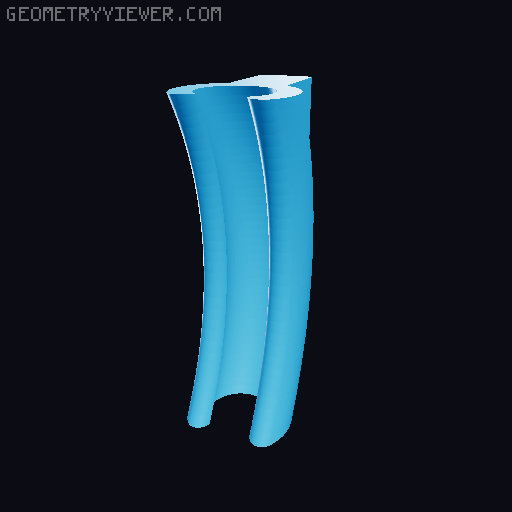

Bike Cable Lock Holder

This lock uses the Spring Latch mechanism by 3D Printy! I tried to create a various number of files to help people with other needs including files for various seat posts and cable thicknesses. Current Bike Post Thicknesses Supported: 35mm 21.15mm 27.2mm Current Cable Thicknesses Supported: 8mm 10mm 12mm 13mm Screws Required: M3x8 - 2pcs M3x10+ - 4pcs( M3x10 works, but anything longer should not cause any problems) M3 nut - 4pcs optional: M3 heat set inserts - 2pcs(for best fit, use ruthex m3x5.7) Instructions: Attach the appropriately sized seat post clips part A and B to your seat post, this should be the bar located under your seat cushion. You will use 4 M3x10 screws and 4 M3 nuts here. Screw on your selected cable lock latch to the appropriate cable lock clip that fits your cable lock using M3x8 screws. If you decided to use heated inserts, you will add the two inserts in the holes on your cable clip. Squeeze the cable lock clip onto your lock. This will be a tight fit, so I recommend squeezing in both sides, then using a tool to clamp in the middle. Enjoy! If there are any questions on sizing, please let me know so I can fix, or add another iteration!
