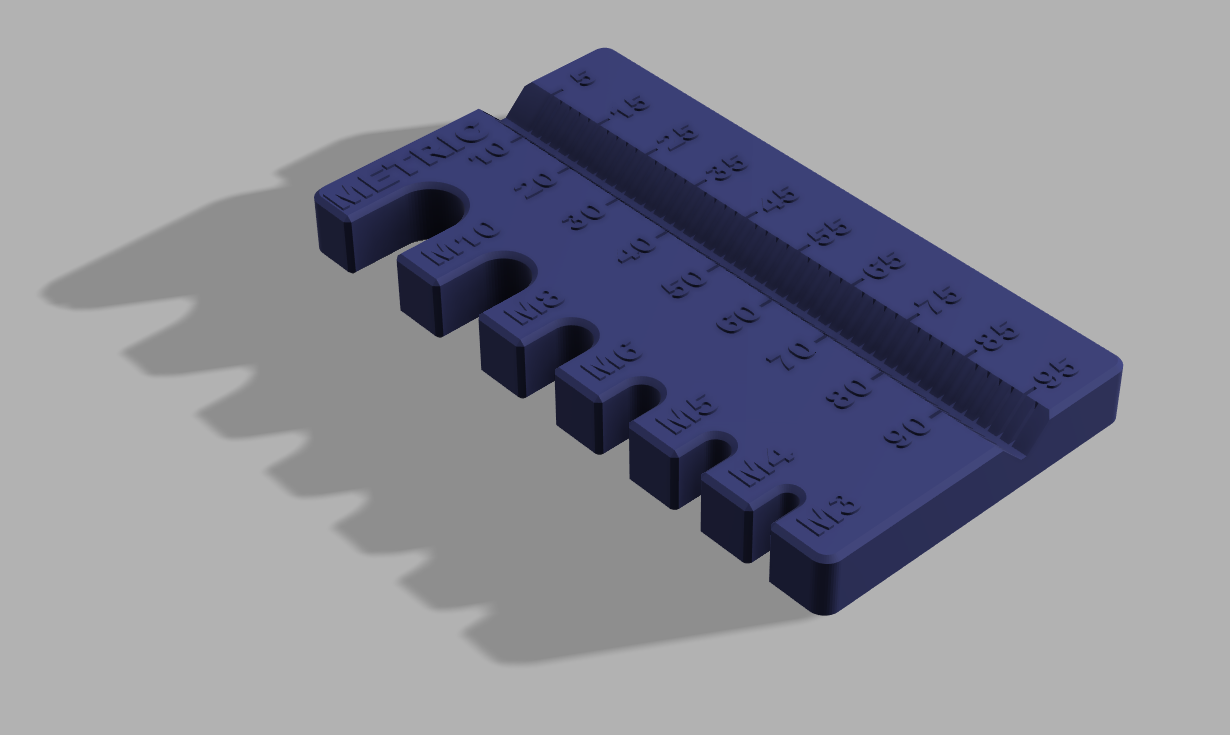

Bike Scruler - screw measuring device for M3-M10 - With magnets 3D model thumbnail

Bike Scruler - screw measuring device for M3-M10 - With magnets

by La Cave Au Chat · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles28.1k
UploadedJul 21, 2025
⬇ 55 downloads ❤ 11 likes 👁 400 views

Description

This is a simple remix of the great Bike Scruler from CMH (https://www.printables.com/model/121531-bike-scruler-screw-measuring-device-for-m3-m10) I remixed the no thread version to suit my needs. -Added holes to insert 4 8x2mm round magnets. -Slightly modified the lettering to my liking. Other than that this is the same design. I did not need the thread measuring and wanted to be able to stick is in the workshop on the metal wall cupboard. As in the original model use color change to make the ruler channel pop as well as the lettering. The prints in the pictures were done with a 0.25 nozzle to have the best resolution for the lettering but you can use 0.4 without any problem.
