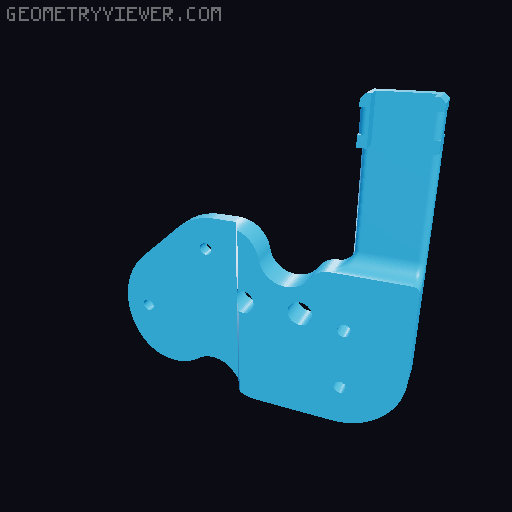

BIQU H2 MAD System Mount 3D model thumbnail

BIQU H2 MAD System Mount

by DougDimmadome · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles5.5k
UploadedJan 24, 2023
⬇ 121 downloads ❤ 16 likes 👁 1.2k views

Description

I created a mounting plate for the MAD system on an Ender 3, I also modified the base MAD mount and the dual 5015 bracket to avoid clearance issues with the X axis gantry. The mounting plate is also setup to use the metal bracket that comes with the BL Touch. The way I have my printer configured, my effective build plate space is 235x214, You could likely get more space but I haven't 100% completed that part yet. I have uploaded my printer.cfg for reference.
plate dual mount modular air ender bracket fan cooling 3 duct h2 mounting 5015 biqu mad
